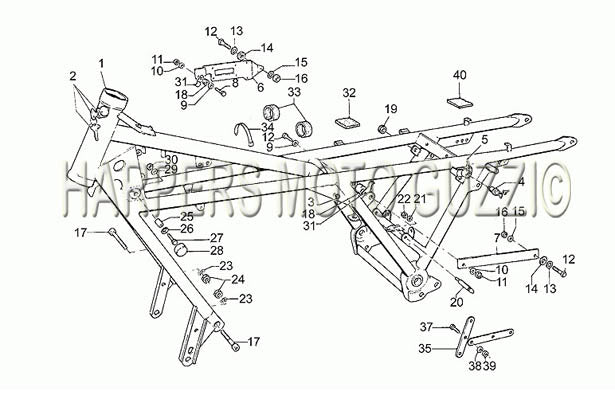

1983 1988 Sp II 1000 Frame
| Position | Part Number | Description |
|---|---|---|
| 1 | 28400145 | #01 Frame (#28400145) |
| 2 | 28782550 | LOCK (#28782550) |
| 3 | 93180080 | PLUG (#93180080) |
| 4 | 35782780 | SEAT LOCK (#35782780) |
| 5 | 35782880 | SCREW (#35782880) |
| 6 | 28424800 | SUPPORT PLATE A (#28424800) |
| 7 | 17424150 | #09 Coil support plate (#17424150) |
| 8 | 98054325 | BOLT (#98054325) |
| 9 | 95100121 | WASHER (#95100121) |
| 10 | 95000206 | WASHER (#95000206) |
| 11 | 92630106 | NUT USE 92630707 (#92630106) |
| 12 | 98054320 | BOLT (#98054320) |
| 13 | 95100141 | WASHER (#95100141) |
| 14 | 93110060 | RUBBER WASHER (#93110060) |
| 17 | 98623630 | SCREW (#98623630) |
| 18 | 14103800 | BUSH (#14103800) |
| 19 | ||
| 20 | 17478550 | PIN (#17478550) |
| 23 | 95021112 | WASHER (#95021112) |
| 24 | 92602312 | NUT (#92602312) |
| 25 | 91180605 | SPACER (#91180605) |
| 26 | 39103500 | PLATE (#39103500) |
| 27 | 98054318 | BOLT (#98054318) |
| 28 | 95004206 | WASHER (#95004206) |
| 30 | 39103400 | RUBBER PAD FOR GAS TANK (#39103400) |
| 31 | 93301313 | BRACKET (#93301313) |
| 32 | 17489645 | RUBBER PAD A (#17489645) |
| 33 | 28109040 | BUFFER (#28109040) |
| 34 | 14609650 | TIE WRAP (#14609650) |
| 35 | 14716750 | SUPPORT PLATE (#14716750) |
| 37 | 98054316 | BOLT (#98054316) USE STHB6X16 |
| 40 | 28438900 | #40 Rubber spacer (#28438900) |
