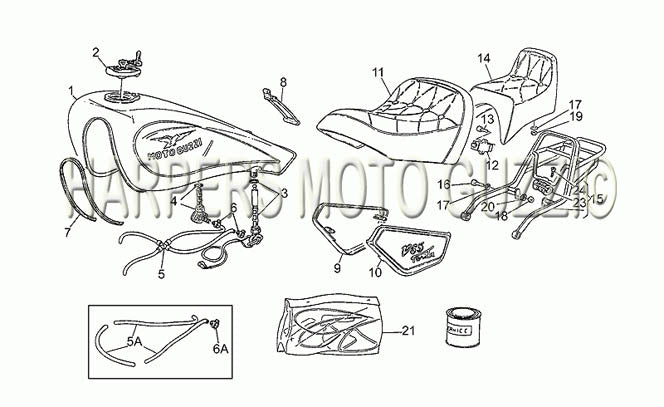

1986 1992 V 65 Florida 650 Body
| Position | Part Number | Description |
|---|---|---|
| 1 | 23100211 | Fuel tank (#23100211) |
| 1 | 23100212 | Fuel tank (#23100212) |
| 1 | 311002601 | #01 Fuel tank (#311002601) |
| 2 | 30103960 | GAS CAP (#30103960) |
| 3 | 23105370 | LH PETCOCK (#23105370) |
| 4 | 23105470 | PETCOCK RH A (#23105470) |
| 5 | 00823956080 | OIL BREATHER HOSE (#00823956080) |
| 5 | 29106500 | FUEL PIPE (#29106500) USE 29106551 |
| 6 | 28108410 | HOSE CLAMP (#28108410) |
| 6 | 28157950 | BREATHER PIPE CLAMP (#28157950) |
| 7 | 00823932085 | outline (#00823932085) |
| 8 | 19102750 | STRAP (#19102750) |
| 9 | 234762101 | #16 RH side cover blank (#234762101) |
| 9 | 23996771 | RH side panel (#23996771) |
| 9 | 23996772 | RH side panel (#23996772) |
| 10 | 23996871 | LH side panel (#23996871) |
| 10 | 23996872 | LH side panel (#23996872) |
| 10 | 314763621 | #17 LH side cover blank (#314763621) |
| 11 | 23460510 | #11 Driver saddle (#23460510) |
| 12 | 27468720 | LOCK (#27468720) |
| 13 | 98622214 | SCREW (#98622214) |
| 14 | 23464010 | #14 Rear saddle (#23464010) |
| 15 | 23466611 | #15 Luggage rack (#23466611) |
| 16 | 98822420 | SCREW (#98822420) |
| 17 | 61270300 | WASHER (#61270300) |
| 18 | 92630508 | NUT (#92630508) |
| 19 | 92602208 | NUT (#92602208) |
| 20 | 95000208 | WASHER (#95000208) |
| 21 | 23923310 | #21 Decal set (#23923310) |
| 23 | 23464811 | Pad (#23464811) |
| 24 | 99220316 | Self-tap screw (#99220316) |
