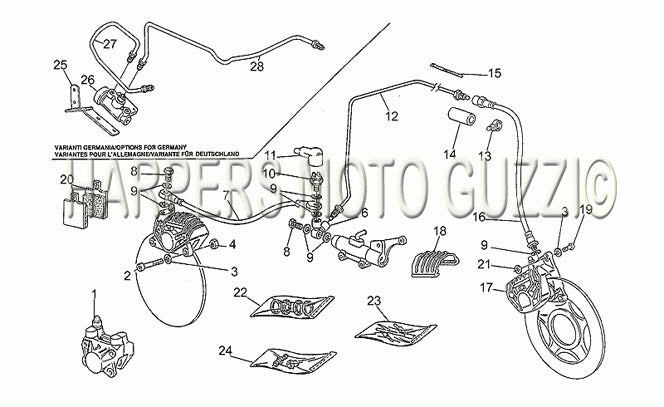

1986 1992 V 65 Florida 650 Brake Calipers
| Position | Part Number | Description |
|---|---|---|
| - | 23653011 | Rear brake caliper (#23653011) |
| 2 | 98622422 | SCREW (#98622422) |
| 3 | 61270300 | WASHER (#61270300) |
| 4 | 92602208 | NUT (#92602208) |
| 6 | 19668000 | SPLITTER (#19668000) |
| 7 | 19658660 | BRAKE HOSE A (#19658660) |
| 8 | 95990028 | SCREW (#95990028) |
| 9 | 25656100 | WASHER, ALUMINUM (#25656100) |
| 10 | 14657050 | SWITCH (BRAKE) (#14657050) |
| 11 | 12735100 | CAP (#12735100) |
| 12 | 19658735 | PIPE (#19658735) |
| 13 | 19436500 | GROMMET (#19436500) |
| 14 | 17573860 | SPACER (#17573860) |
| 15 | 14609650 | TIE WRAP (#14609650) |
| 16 | 17658860 | FLEX HOSE (#17658860) |
| 17 | 31652265 | RH front brake caliper Grimeca (#31652265) |
| 17 | 31654765 | Brake caliper cover GRIMECA (#31654765) |
| 18 | 39654700 | COVER (#39654700) |
| 20 | 27654610 | PAD SET (#27654610) |
| 20 | 31654660 | #02 Pads pair (#31654660) |
| 20 | 31654665 | Pads pair GRIMECA (#31654665) |
| 21 | 95100250 | SHIM (#95100250) |
| 21 | 95100251 | WASHER (#95100251) |
| 22 | 39659000 | CALIPER REVISION KIT (#39659000) |
| 22 | 66659031 | Brake caliper rev. kit GRIMECA (#66659031) |
| 23 | 31659160 | #12 Pins+spring BREMBO (#31659160) |
| 23 | 31659165 | Pins+spring GRIMECA (#31659165) |
| 23 | 39659100 | REV KIT (#39659100) |
| 24 | 31659260 | BLEEDER SCREW KIT(#31659260) |
| 24 | 31659265 | Bleeder+cap GRIMECA (#31659265) |
| 24 | 65659200 | BLEEDER KIT (#65659200) |
| 25 | 23415670 | Maintenance (#23415670) |
| 26 | 19668565 | BRAKE VALVE B (#19668565) |
| 27 | 23657870 | pipe (#23657870) |
| 28 | 23658770 | pipe (#23658770) |
