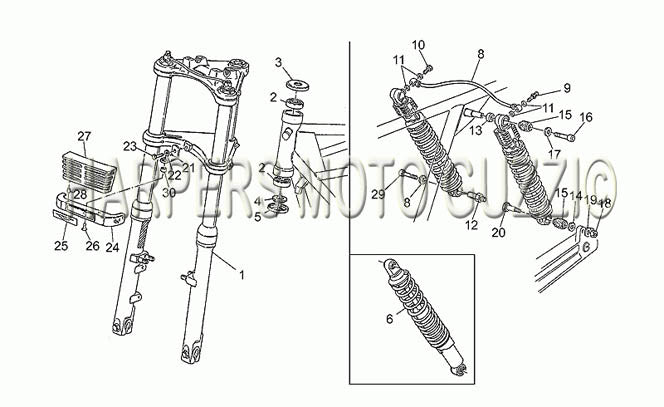

1986 1992 V 65 Florida 650 Front Rear Shock Absorber
| Position | Part Number | Description |
|---|---|---|
| 1 | 23490371 | Front fork (#23490371) |
| 2 | 92249225 | TAPERED ROLLER BRNG (#92249225) |
| 3 | 14494600 | CUP (#14494600) |
| 4 | 14516700 | SHIM (#14516700) |
| 5 | 14517000 | RING DUST SEAL (#14517000) |
| 6 | 23999270 | Shock absorber-pair (#23999270) |
| 8 | 19556160 | TUBE (#19556160) |
| 9 | 28556250 | VALVE (#28556250) |
| 10 | 28556450 | SCREW (#28556450) |
| 11 | 28556350 | WASHER SPECIAL PLASTIC WASHER (#28556350) |
| 12 | 23555281 | PIN (#23555281) |
| 13 | 91181407 | SPACER (#91181407) |
| 14 | 95100256 | WASHER (#95100256) |
| 15 | 14551655 | BUSHING (#14551655) |
| 16 | 98822440 | ALLEN BOLT (#98822440) |
| 17 | 95000208 | WASHER (#95000208) |
| 18 | 92602410 | NUT (#92602410) |
| 19 | 95004210 | WASHER (#95004210) |
| 20 | 23555280 | STUD (#23555280) |
| 21 | 19498060 | PLATE (#19498060) |
| 22 | 61013800 | SPRING WASHER (#61013800) |
| 23 | 98054320 | BOLT (#98054320) |
| 24 | 23751310 | Clamp (#23751310) |
| 25 | 23769510 | BIRD (#23769510) |
| 26 | 98326014 | SCREW (#98326014) |
| 27 | 23505810 | GRILL (#23505810) |
| 28 | 23922210 | FASTENER (#23922210) |
| 29 | 98822416 | SCREW (#98822416) |
| 30 | 91180706 | SPACER (#91180706) |
