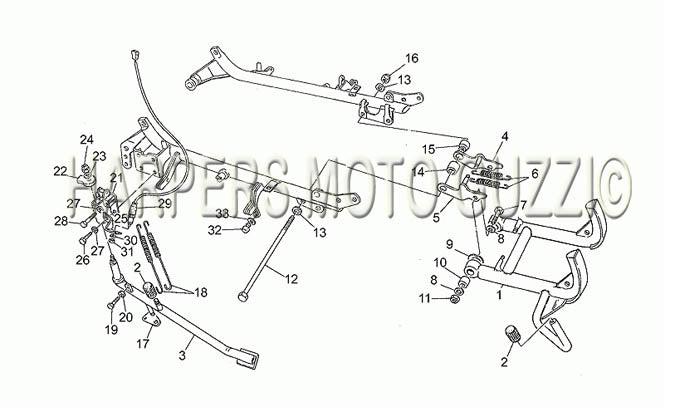

1988 1990 California III Full Fairing 1000 Stands
| Position | Part Number | Description |
|---|---|---|
| 1 | 30430360 | CENTER STAND A (#30430360) |
| 2 | 13432640 | CENTER STAND/SIDE STAND RUBBER (#13432640) |
| 3 | 29432050 | SIDE STAND B (#29432050) |
| 4 | 14432900 | PLATE USE 03432970 RH (#14432900) |
| 5 | 14433200 | PLATE USE 0343 3270 LH (#14433200) |
| 6 | 18434060 | CENTERSTAND SPRING (#18434060) |
| 7 | 98052545 | SCREW (#98052545) |
| 8 | 95004210 | WASHER (#95004210) |
| 9 | 14433400 | WASHER (#14433400) |
| 10 | 14433500 | BUSHING (#14433500) |
| 11 | 92630110 | NUT (#92630110) |
| 12 | 14429600 | BOLT (#14429600) |
| 13 | 95000213 | WASHER (#95000213) |
| 14 | 14429800 | SPACER (#14429800) |
| 15 | 14429900 | SPACER (#14429900) |
| 16 | 92602312 | NUT (#92602312) |
| 17 | 18432760 | PLATE (#18432760) |
| 18 | 14434000 | SPRING (#14434000) |
| 19 | 98054216 | SCREW (#98054216) |
| 20 | 92602205 | NUT (#92602205) |
| 21 | 13433440 | SUPPORT (#13433440) |
| 22 | 13432741 | LUG BRACKET (#13432741) |
| 24 | 92602210 | NUT (#92602210) |
| 25 | 29433850 | BRACKET (#29433850) |
| 26 | 98054416 | BOLT (#98054416) |
| 27 | 95021108 | WASHER (#95021108) |
| 28 | 98052440 | BOLT (#98052440) |
| 29 | 29759150 | SWITCH (#29759150) |
| 30 | 61270300 | WASHER (#61270300) |
| 31 | ||
| 32 | 12433000 | BUFFER-CENTER STAND STOP (#12433000) |
