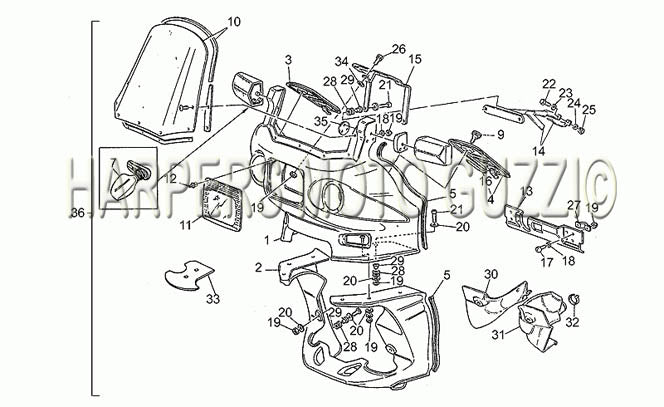

1988 1995 V 65 Polizia pa nuovotipo 650 Fairing

Position Part Number Description
1 23575490 Top fairing (#23575490)
2 23570390 Lower fairing (#23570390)
3 23578090 RH cover (#23578090)
4 23578190 LH cover (#23578190)
5 23575890 Gasket (#23575890)
7 28769847 MIRROR (#28769847)
9 23584090 Knob (#23584090)
10 23577290 Windscreen (#23577290)
11 23741890 Taillight lens (#23741890)
12 23922290 Plastic rivet (#23922290)
13 23582690 Handlebar plate (#23582690)
14 23578690 Upper support (#23578690)
15 23502390 Radio-telephone support (#23502390)
16 23578990 Gasket (#23578990)
17 98310612 SCREW (#98310612)
18 95100130 WASHER (#95100130)
19 92630206 NUT (#92630206)
20 95100142 WASHER (#95100142)
21 98620330 V/COVER BOLT (#98620330) USE 98680330
22 98054420 BOLT (#98054420)
23 95100245 WASHER (#95100245)
24 95021108 WASHER (#95021108)
25 92602208 NUT (#92602208)
26 98074316 BOLT (#98074316)
27 23578490 U-bolt (#23578490)
28 23573990 Rubber spacer (#23573990)
29 23576190 Bushing (#23576190)
30 23576690 RH front footrest guard (#23576690)
31 23576790 LH front footrest guard (#23576790)
32 14609650 TIE WRAP (#14609650)
33 23501690 Cover (#23501690)
34 93110060 RUBBER WASHER (#93110060)
35 23769990 plate (#23769990)
36 23922990 Fairing assy (#23922990)
