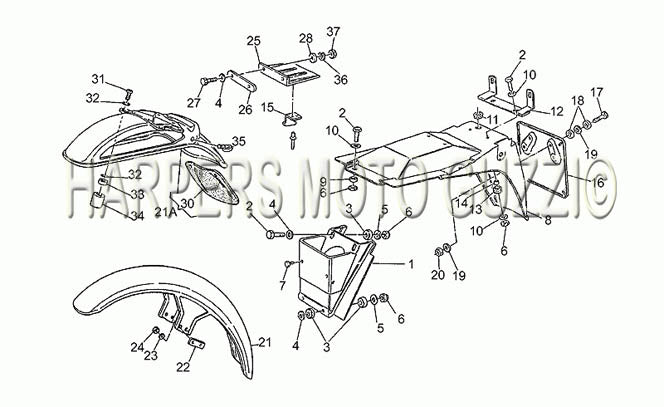

1988 1995 V 65 Polizia pa nuovotipo 650 Front Rear Mudguards
| Position | Part Number | Description |
|---|---|---|
| 1 | 23438690 | Splash guard (#23438690) |
| 2 | 98054320 | BOLT (#98054320) |
| 3 | 93110060 | RUBBER WASHER (#93110060) |
| 4 | 95000206 | WASHER (#95000206) |
| 5 | 95100141 | WASHER (#95100141) |
| 6 | 92630106 | NUT USE 92630707 (#92630106) |
| 7 | 19705900 | PLUG (#19705900) |
| 8 | 19437015 | Rear mudguard (#19437015) |
| 9 | 93110082 | RUBBER WASHER (#93110082) |
| 10 | 95004206 | WASHER (#95004206) |
| 11 | 91551092 | #04 Grommet (#91551092) |
| 12 | 27474385 | #16 Rear headlight supp. (#27474385) |
| 13 | 91551085 | RUBBER BLOCK USE 9155 1086 (#91551085) |
| 14 | 91180607 | SPACER (#91180607) |
| 15 | 23438510 | #29 Holder (#23438510) |
| 16 | ||
| 17 | 98052220 | BOLT (#98052220) |
| 18 | 90716057 | FAIRING O RING (#90716057) |
| 19 | 95100059 | WASHER (#95100059) |
| 20 | 92630105 | NUT (#92630105) |
| 21 | 194344071 | #11 Front mudguard (#194344071) |
| 21 | 274344201 | #01 Front mudguard blank (#274344201) |
| 21 | 31434382 | Front mudguard (#31434382) |
| 22 | 19436600 | PLATE (#19436600) |
| 23 | 61270300 | WASHER (#61270300) |
| 24 | 92630508 | NUT (#92630508) |
| 25 | 23439010 | #30 Control unit fixing plate (#23439010) |
| 26 | 23439210 | #31 Plate (#23439210) |
| 27 | 98054312 | BOLT (#98054312) |
| 28 | 95100118 | WASHER (#95100118) |
| 30 | 27436920 | #02 Splash guard (#27436920) |
| 31 | 98230845 | ALLEN BOLT (#98230845) |
| 32 | 90706092 | O RING (#90706092) |
| 33 | 28436460 | BUSHING A (#28436460) |
| 34 | 31436415 | SPACER A (#31436415) |
| 35 | 28659740 | GROMMET (#28659740) |
| 36 | 95021106 | WASHER, WAVE (#95021106) |
| 37 | 92602206 | NUT (#92602206) USE STHN6MM |
