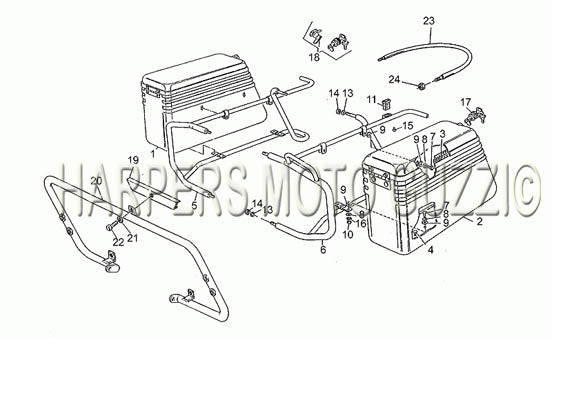

1990 1991 V 35 Carabinieri pa 350 Saddlebags Pair
| Position | Part Number | Description |
|---|---|---|
| 1 | 28482580 | #01 RH side case assy.,Carab.blue (#28482580) |
| 2 | 28485780 | #02 LH side case assy.,Carab.blue (#28485780) |
| 3 | 28483946 | #03 Cover gasket (#28483946) |
| 4 | 19705900 | PLUG (#19705900) |
| 5 | 28485045 | #05 RH support (#28485045) |
| 6 | 28486545 | #06 LH support (#28486545) |
| 7 | 98054320 | BOLT (#98054320) |
| 8 | 95100141 | WASHER (#95100141) |
| 9 | 93110060 | RUBBER WASHER (#93110060) |
| 10 | 92602206 | NUT (#92602206) USE STHN6MM |
| 11 | 28584845 | #11 Rubber spacer (#28584845) |
| 13 | 95021108 | WASHER (#95021108) |
| 14 | 92602208 | NUT (#92602208) |
| 15 | 93180706 | PLUG (#93180706) |
| 16 | 95021106 | WASHER, WAVE (#95021106) |
| 17 | 28489945 | #17 Lock (#28489945) |
| 18 | 23736891 | Lock kit BOSCH (#23736891) |
| 19 | 19451515 | Fixing plate (#19451515) |
| 20 | 19451525 | Fixing plate (#19451525) |
| 21 | 95020108 | Washer (#95020108) |
| 22 | 98610445 | ALLEN BOLT (#98610445) |
| 23 | 28486880 | #26 Side case connect.crosspiece (#28486880) |
| 24 | 92630508 | NUT (#92630508) |
