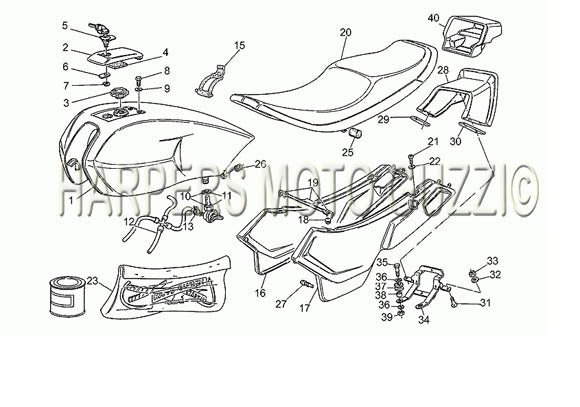

1990 1992 Targa 750 Body
| Position | Part Number | Description |
|---|---|---|
| 1 | 271002201 | #01 Fuel tank (#271002201) |
| 1 | 31100215 | #01 Fuel tank (#31100215) |
| 2 | 611040601 | #44 Fuel filler cap cover (#611040601) |
| 3 | 28103946 | GAS TANK CAP (#28103946) |
| 4 | 19104336 | GROMMET (#19104336) |
| 5 | 14736856 | LOCK W/ KEY (#14736856) |
| 6 | 18105001 | LATCH (#18105001) |
| 7 | 19104950 | RETAINER (#19104950) |
| 8 | 98054210 | BOLT (#98054210) |
| 9 | 95129100 | WASHER (#95129100) |
| 10 | 65105400 | RH PETCOCK RH (#65105400) |
| 11 | 65105401 | PETCOCK LH (#65105401) |
| 12 | 29106500 | FUEL PIPE (#29106500) USE 29106551 |
| 13 | 28108410 | HOSE CLAMP (#28108410) |
| 15 | 19102750 | STRAP (#19102750) |
| 16 | 275703201 | #16 RH side panel (#275703201) |
| 16 | 31570315 | #16 RH side panel (#31570315) |
| 17 | 275704861 | #17 LH side panel (#275704861) |
| 17 | 31570415 | #17 LH side panel (#31570415) |
| 18 | 50740600 | GROMMET (#50740600) |
| 19 | 27999560 | SUPPORT ROD (#27999560) |
| 20 | 27460520 | SEAT LARIO (#27460520) |
| 21 | 98290516 | BOLT (#98290516) |
| 22 | 95004206 | WASHER (#95004206) |
| 23 | 31923315 | #23 Decal set (#31923315) |
| 25 | 27461820 | PLUG (#27461820) |
| 26 | 91551062 | GROMMET (#91551062) |
| 27 | 31471915 | #27 Pin (#31471915) |
| 28 | 274726201 | #28 Rear fairing (#274726201) |
| 28 | 28472661 | TAIL PIECE-RED B USE 2847 2670 (#28472661) |
| 29 | 27573820 | FELT SPACER (#27573820) |
| 30 | 27573821 | SPACER (#27573821) |
| 31 | 98250616 | SCREW (#98250616) |
| 33 | 92602206 | NUT (#92602206) USE STHN6MM |
| 34 | 27474320 | RR SUPPORT (#27474320) |
| 35 | 98054320 | BOLT (#98054320) |
| 37 | 91551085 | RUBBER BLOCK USE 9155 1086 (#91551085) |
| 38 | 91180607 | SPACER (#91180607) |
| 39 | 92630106 | NUT USE 92630707 (#92630106) |
| 40 | 27479620 | TOOL BOX A (#27479620) |
