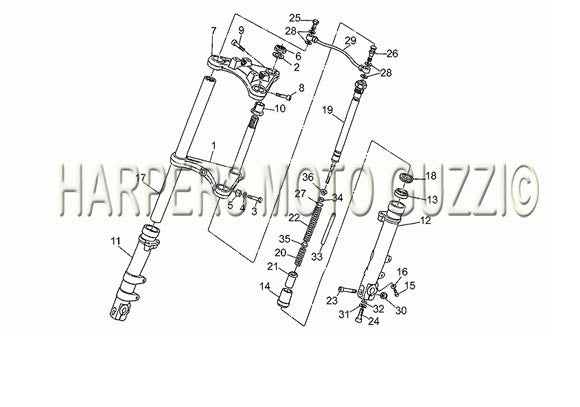

1990 1992 Targa 750 Front Fork
| Position | Part Number | Description |
|---|---|---|
| 1 | 23494040 | #01 Lower plate (#23494040) |
| 2 | 18513560 | SHIM (#18513560) |
| 3 | 98072555 | BOLT BLACK (#98072555) |
| 4 | 95007210 | WASHER (#95007210) |
| 5 | 91181016 | SPACER (#91181016) |
| 6 | 18513460 | NUT (#18513460) |
| 7 | 31493115 | #07 Upper plate (#31493115) |
| 8 | 98610540 | BOLT (#98610540) |
| 9 | 98612535 | SCREW BLACK (#98612535) |
| 10 | 18516660 | BUSHING (#18516660) |
| 11 | 31522515 | #11 RH sleeve -grey (#31522515) |
| 12 | 31522615 | #12 LH sleeve -grey- (#31522615) |
| 13 | 90403857 | FORK SEAL (#90403857) USE 429013 |
| 14 | 20527620 | #14 Bush (#20527620) |
| 15 | 98622320 | SCREW (#98622320) |
| 16 | 95100116 | WASHER (#95100116) |
| 17 | 23525470 | #17 Sleeve (#23525470) |
| 18 | 31524550 | #18 Dust cover (#31524550) |
| 19 | 23526470 | Shock absorber (#23526470) |
| 20 | 23526610 | #20 Return spring (#23526610) |
| 21 | 28527540 | LOWER SHOCK BUSHING (#28527540) |
| 22 | 23526910 | #22 Spring (#23526910) |
| 23 | 98622545 | ALLEN BOLT (#98622545) |
| 24 | 98622530 | BOLT (#98622530) |
| 25 | 28556450 | SCREW (#28556450) |
| 26 | 28556250 | VALVE (#28556250) |
| 27 | 90706282 | O RING (#90706282) |
| 28 | 28556350 | WASHER SPECIAL PLASTIC WASHER (#28556350) |
| 29 | 19529660 | TUBE (#19529660) |
| 30 | 92781100 | CAP NUT CHROME (#92781100) |
| 31 | 27499120 | WASHER A (#27499120) |
| 32 | 90706094 | O RING-VITON (#90706094) |
| 33 | 23526370 | #05 Anti-rubbing pipe (#23526370) |
| 34 | 92602308 | NUT (#92602308) |
| 35 | 23527910 | SPACER (#23527910) |
| 36 | 28526540 | WASHER (#28526540) |
