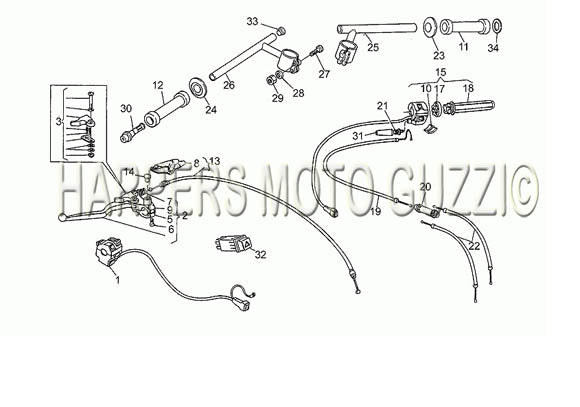

1990 1992 Targa 750 Handlebar Controls
| Position | Part Number | Description |
|---|---|---|
| 1 | 27738015 | SWITCH (#27738015) |
| 2 | 30605530 | CLUTCH LEVER ASSY #30605530) (#30605530) |
| 3 | 27659415 | CHOKE LEVER ASSY (#27659415) |
| 5 | 27601015 | HALF CLAMP (#27601015) |
| 6 | 27601215 | ALLEN BOLT BLACK (#27601215) |
| 7 | 30602500 | ADJUSTER ASSY (#30602500)USE AP8118348 |
| 8 | 27663815 | CABLE BOOT (#27663815) |
| 9 | 27601815 | LEVER SUPPORT (#27601815) |
| 10 | 27604515 | CBLE GUIDE (#27604515) |
| 11 | 27603520 | GRIP RH (#27603520) |
| 12 | 27603020 | GRIP LH (#27603020) |
| 13 | 27093022 | Clutch Cable (#27093022) |
| 14 | 93180080 | PLUG (#93180080) |
| 15 | 27603400 | THROTTLE/SWITCH ASS. NLA 7/05 (#27603400) |
| 17 | 27604415 | GUIDE BLOCK (#27604415) |
| 18 | 27603815 | THROTTLE TUBE (#27603815) |
| 19 | 27117522 | Throttle cable (#27117522) |
| 20 | 30607910 | CABLE SPLITTER (#30607910) |
| 21 | 27603715 | ADJUSTER (#27603715) |
| 22 | 31117715 | Throttle cable (#31117715) |
| 23 | 27603620 | RING (#27603620) |
| 24 | 27603120 | WASHER (#27603120) |
| 25 | 31600615 | #25 Right half handlebar (#31600615) |
| 26 | 31600715 | #26 Left half handlebar (#31600715) |
| 27 | 98610335 | BOLT (#98610335) |
| 28 | 95001206 | WASHER (#95001206) |
| 29 | 92630106 | NUT USE 92630707 (#92630106) |
| 30 | 28602790 | STABILIZER(CHRO A (#28602790) |
| 31 | 27117615 | BOOT (#27117615) |
| 32 | 28745761 | HAZARD SWITCH (#28745761) |
| 33 | 61605230 | PLUG (#61605230) |
| 34 | 29606970 | WASHER (PAIR) (#29606970) |
