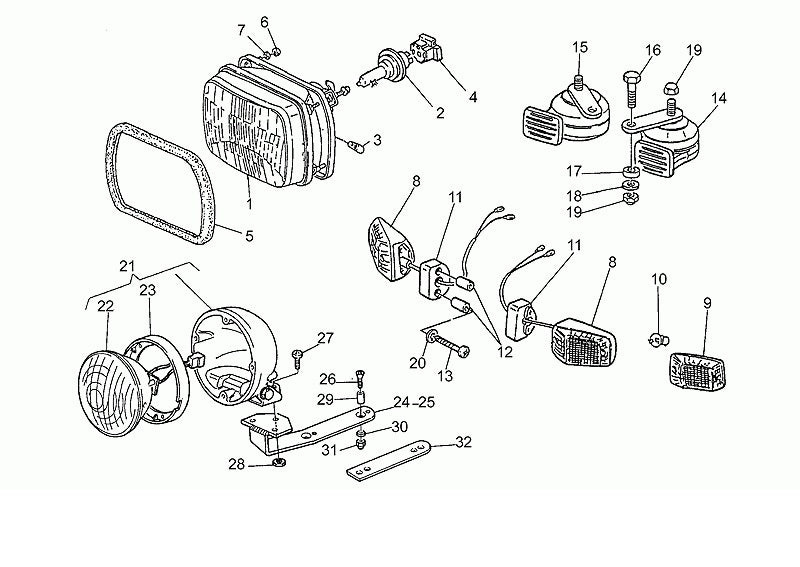

1992 1996 V 75 PA Vecchio Tipo 750 Headlight Horn
| Position | Part Number | Description |
|---|---|---|
| 1 | 28740560 | HEADLIGHT (#28740560) |
| 2 | 93450232 | CAL H/L BULB 60/55 (#93450232) USE 292723 |
| 3 | 93450119 | BULB 12V (#93450119) USE 163015 |
| 4 | 14756255 | CONNECTION (#14756255) |
| 5 | 00823933090 | GASKET (#00823933090) |
| 6 | 92602205 | NUT (#92602205) |
| 7 | 95021105 | LOCK WASHER (#95021105) |
| 8 | 30750610 | LAMP SIGNAL (#30750610) |
| 9 | 23753710 | TURN SIGNAL LENS RECTANGLE (#23753710) |
| 10 | 93450127 | T/SIG. BULB - CLEAR (#93450127) |
| 11 | 30751410 | LAMP BASE (#30751410) |
| 12 | 91180626 | SPACER A (#91180626) |
| 13 | 99210445 | SCREW (#99210445) |
| 14 | 28743760 | HORN (#28743760) |
| 15 | 28743761 | HORN (#28743761) |
| 16 | 98054316 | BOLT (#98054316) USE STHB6X16 |
| 17 | 91180605 | SPACER (#91180605) |
| 18 | 95000206 | WASHER (#95000206) |
| 19 | 92630206 | NUT (#92630206) |
| 20 | 95100059 | WASHER (#95100059) |
| 21 | 31743335 | #21 Halogen light assy., blue CPU (#31743335) |
| 22 | 23743392 | #22 Additional halogen light, blue CPU (#23743392) |
| 23 | 23742890 | #23 Light frame (#23742890) |
| 24 | 19728015 | RH clamp (#19728015) |
| 25 | 19728115 | LH clamp (#19728115) |
| 26 | 98250630 | ALLEN BOLT (#98250630) |
| 27 | 98290520 | SCREW (#98290520) |
| 28 | 92630105 | NUT (#92630105) |
| 29 | 91180615 | Spacer (#91180615) |
| 30 | 95100123 | WASHER (#95100123) |
| 31 | 92630207 | NUT NYLOC \ (#92630207) |
| 32 | 19743815 | Gasket (#19743815) |
