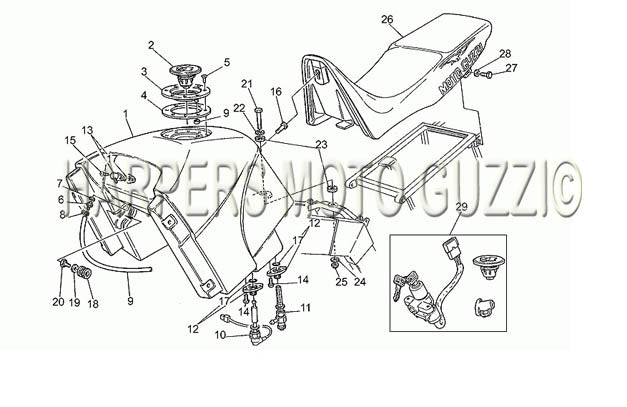

1992 1997 Quota 1000 Fuel Tank Seat
| Position | Part Number | Description |
|---|---|---|
| 1 | 301002301 | Fuel tank (#301002301) |
| 1 | 30100231 | Fuel tank (#30100231) |
| 1 | 30100232 | Fuel tank (#30100232) |
| 1 | 30100233 | Fuel tank (#30100233) |
| 1 | 89000053 | Fuel tank (#89000053) |
| 2 | 30104100 | GAS TANK CAP (#30104100) |
| 3 | 30102300 | TANK CAP FLANGE (#30102300) |
| 4 | 30101700 | GASKET (#30101700) |
| 5 | 98250512 | ALLEN SCREW (#98250512) |
| 6 | 30103730 | UNION (#30103730) |
| 7 | 30104630 | GASKET (#30104630) |
| 8 | 61108500 | CLIP (#61108500) |
| 9 | 00823944050 | HOSE (#00823944050) |
| 10 | 30103030 | FUEL SENSOR (#30103030) |
| 11 | 29105460 | CAL 3 PETCOCK 1100 SPORT (#29105460) |
| 12 | 30101830 | FLANGE A (#30101830) |
| 13 | 30101730 | Tank plug flange (#30101730) |
| 14 | 98230510 | ALLEN BOLT (#98230510) |
| 15 | 98230612 | ALLEN SCREW (#98230612) |
| 16 | 30103230 | screw (#30103230) |
| 17 | 90706115 | O-ring (#90706115) |
| 18 | 91551166 | QUOTA TANK GROMMET (#91551166) |
| 19 | 95100256 | WASHER (#95100256) |
| 20 | 98054416 | BOLT (#98054416) |
| 21 | 98052350 | BOLT (#98052350) |
| 22 | 95100141 | WASHER (#95100141) |
| 23 | 93110082 | RUBBER WASHER (#93110082) |
| 24 | 95000206 | WASHER (#95000206) |
| 25 | 92630106 | NUT USE 92630707 (#92630106) |
| 26 | 30460530 | Saddle (#30460530) |
| 28 | 95004206 | WASHER (#95004206) |
| 29 | 30736830 | Lock kit (#30736830) |
