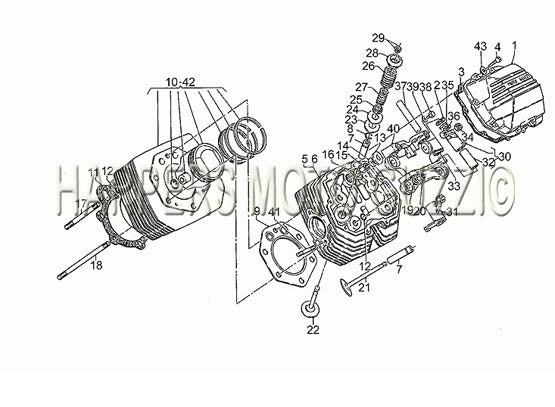

1993 Sp III 1000 Cylinder Head Piston
| Position | Part Number | Description |
|---|---|---|
| 1 | 14023560 | VALVE COVER (14023560) (#14023560) |
| 2 | 10032700 | WASHER (#10032700) |
| 3 | 14023760 | V/C GASKET (#14023760) |
| 4 | 98622325 | BOLT CHROME (#98622325) |
| 5 | 30022110 | RH CYL HEAD C (#30022110) |
| 6 | 30022210 | CYLINDER HEAD (#30022210) |
| 7 | 13036801 | VALVE GUIDE (#13036801) |
| 8 | 90353016 | VALVE GUIDE CLIP (#90353016) |
| 9 | 14022065 | HEAD GSKT (#14022065) |
| 10 | 30060110 | RH CYL/PISTON A C (#30060110) |
| 11 | 14020865 | BASE GASKET (#14020865) |
| 12 | 90706094 | O RING-VITON (#90706094) |
| 13 | 12022600 | PLUG (#12022600) |
| 14 | 90706203 | O RING (#90706203) |
| 15 | ||
| 16 | 95129180 | WAVE WASHER (#95129180) |
| 17 | 12021800 | BOLT (#12021800) |
| 18 | 12021700 | BOLT-ROD (#12021700) |
| 19 | 14018400 | WASHER (#14018400) |
| 20 | 92602010 | NUT (#92602010) |
| 21 | 14036050 | INTAKE VALVE (#14036050) |
| 22 | 14036150 | EXHAUST VALVE (#14036150) |
| 23 | 13037200 | WASHER (#13037200) |
| 24 | 14037300 | WASHER (#14037300) |
| 25 | 13037000 | PLATE (#13037000) |
| 26 | 13037400 | OUTER SPRING (#13037400) |
| 27 | 13037600 | INNER SPRING (#13037600) |
| 28 | 14038000 | UPPER COLLAR (#14038000) |
| 29 | 12038100 | HALF CONE (#12038100) |
| 30 | 14030200 | ROCKER ARM (#14030200) |
| 31 | 14030400 | ROCKER ARM (#14030400) |
| 32 | 91111511 | ROCK.ARM BSHG. (#91111511) |
| 33 | 17034050 | ADJ.SCREW (#17034050) |
| 34 | 10034100 | ROCKER ARM ADJUSTER NUT (#10034100) |
| 35 | 94322215 | SPRING-ROCKER (#94322215) |
| 36 | 90118152 | WASHER (#90118152) |
| 37 | 12031800 | ROCKER SPINDLE (#12031800) |
| 38 | 98054316 | BOLT (#98054316) USE STHB6X16 |
| 39 | 95120065 | WASHER (#95120065) |
| 40 | 14034865 | SUPPORT (#14034865) |
| 41 | 96508042 | STUD USE 96508040 (#96508042) |
| 42 | 30060111 | LH CYL/PISTON A C (#30060111) |
| 43 | 95004206 | WASHER (#95004206) |
