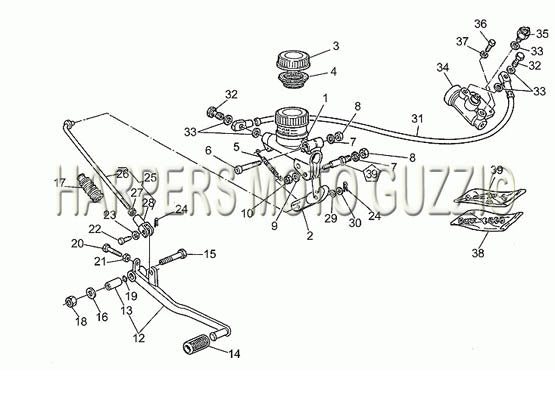

1993 Sp III 1000 Rear Master Cylinder
| Position | Part Number | Description |
|---|---|---|
| 1 | 29667000 | MASTER CYL REAR (#29667000) |
| 2 | 17667551 | LEVER (#17667551) |
| 3 | 14661100 | CAP (#14661100) |
| 4 | 14661300 | BELLOWS M/C REAR WAS 17661350 (#14661300) |
| 5 | 17667651 | SPRING (#17667651) |
| 6 | 98620440 | SCREW (#98620440) |
| 7 | 95021108 | WASHER (#95021108) |
| 8 | 92602208 | NUT (#92602208) |
| 9 | 95000206 | WASHER (#95000206) |
| 10 | 92630206 | NUT (#92630206) |
| 12 | 30676510 | BRAKE LEVER ASS A (#30676510) |
| 13 | 28252010 | BUSHING (#28252010) |
| 14 | 14251001 | SHIFT AND BRAKE PEDAL RUBBER (#14251001) |
| 15 | ||
| 16 | 95100409 | WASHER (#95100409) |
| 17 | 17093850 | CABLE BOOT (#17093850) |
| 18 | 92701120 | NUT (#92701120) |
| 19 | 90706108 | O RING (#90706108) |
| 20 | 98054320 | BOLT (#98054320) |
| 21 | 92602206 | NUT (#92602206) USE STHN6MM |
| 22 | 95770265 | PIN (#95770265) |
| 23 | 95129110 | WASHER (#95129110) |
| 24 | 95500222 | SPLIT PIN (#95500222) |
| 25 | 17675050 | ROD COMPL. (#17675050) |
| 26 | 17675150 | ROD LINKAGE (#17675150) |
| 27 | 92700073 | NUT (#92700073) |
| 28 | 95740171 | FORK (#95740171) |
| 29 | 95129130 | SHAKE PROOF WASHER (#95129130) |
| 30 | 95100173 | WASHER (#95100173) |
| 31 | 28658560 | BRAKE HOSE (#28658560) |
| 32 | 95990028 | SCREW (#95990028) |
| 33 | 25656100 | WASHER, ALUMINUM (#25656100) |
| 34 | 19668565 | BRAKE VALVE B (#19668565) |
| 35 | 63657000 | BRAKE LIGHT SWITCH (#63657000) |
| 36 | 98054316 | BOLT (#98054316) USE STHB6X16 |
| 37 | 61013800 | SPRING WASHER (#61013800) |
| 38 | 17659350 | Rear Master Cylinder Kit (Front for T) (#17659350) |
| 39 | 14659450 | REV.KIT (#14659450) |
