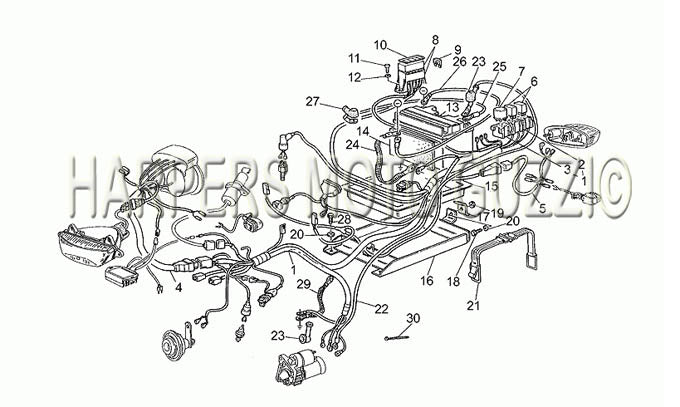

1994 1996 Sport Carburated 1100 Electrical System
| Position | Part Number | Description |
|---|---|---|
| 1 | 37747105 | WIRE HARNESS (#37747105) |
| 2 | 30732400 | RELAY HOLDER (#30732400) |
| 3 | 30756100 | FLASHER HOLDER (#30756100) |
| 4 | 30747200 | DASH HARNESS (#30747200) |
| 5 | 30747300 | HARNESS REAR A (#30747300) |
| 6 | ||
| 7 | 17750520 | TURN SIGNAL FLASHER (#17750520) |
| 8 | 37743005 | FUSE BOX A (#37743005) |
| 9 | 28742560 | FUSE 15A (#28742560) use 290860 |
| 10 | 37945005 | FUSE BOX DECAL (#37945005) |
| 11 | 98622210 | SCREW (#98622210) |
| 12 | 95004205 | WASHER (#95004205) |
| 13 | 37704505 | BATTERY B (#37704505) |
| 14 | 37705305 | DIVIDER (#37705305) |
| 15 | 37707005 | BATTERY TRAY (#37707005) |
| 16 | 37418205 | BATTERY MOUNT (#37418205) |
| 17 | 37419405 | PLATE A (#37419405) |
| 18 | 98054314 | SCREW (#98054314) |
| 19 | 92630106 | NUT USE 92630707 (#92630106) |
| 20 | 14217901 | LOCK WASHER (#14217901) USE AP8152105 |
| 21 | 37705505 | BATTERY STRAP (#37705505) |
| 22 | 30748400 | BATTERY CABLE (#30748400) |
| 23 | 30759600 | CABLE BOOT A (#30759600) |
| 24 | 28747960 | GROUND STRAP (#28747960) |
| 25 | 37734305 | WIRE RED A (#37734305) |
| 26 | 37734805 | WIRE BLACK A (#37734805) |
| 27 | 12703000 | CAP-GENERATOR LEEDS (#12703000) NLA |
| 29 | 37748405 | GROUND CABLE (#37748405) |
| 30 | 14609650 | TIE WRAP (#14609650) |
| 30 | 93304390 | TIE WRAP (#93304390) |
