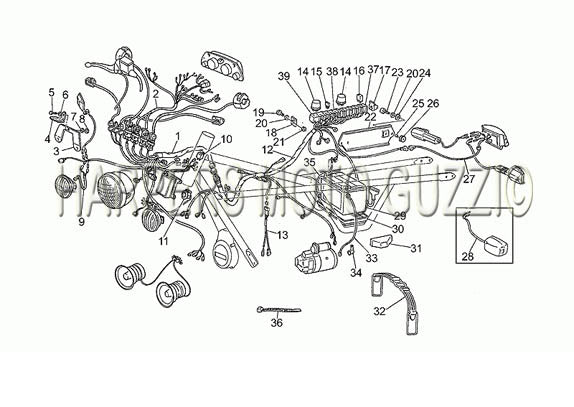

1996 2001 V 75 PA Nuovo Tipo 750 Electrical System
| Position | Part Number | Description |
|---|---|---|
| 1 | 20747120 | System VAMA 183 3can (#20747120) |
| 1 | 20747121 | System VAMA fa520/m 3can (#20747121) |
| 1 | 20747122 | Steering column electr.system (#20747122) |
| 2 | 20747220 | Dashboard cable (#20747220) |
| 3 | 20749721 | Pakard connector plate (#20749721) |
| 4 | 20749720 | Molex connector plate (#20749720) |
| 5 | 98054216 | SCREW (#98054216) |
| 6 | 95004205 | WASHER (#95004205) |
| 7 | 95021105 | LOCK WASHER (#95021105) |
| 8 | 92602205 | NUT (#92602205) |
| 9 | 23720190 | #46 Wiring 1 LAMP. (#23720190) |
| 9 | 23720191 | Wiring 2 LAMP. (#23720191) |
| 10 | 28732545 | #15 Siren relay SWF (#28732545) |
| 11 | 28787247 | BEEPER (#28787247) |
| 12 | 20747320 | Rear wiring (#20747320) |
| 12 | 20747322 | Rear wiring (#20747322) |
| 13 | 31724540 | #16 Neutral sensor cable (#31724540) |
| 14 | 17750520 | TURN SIGNAL FLASHER (#17750520) |
| 15 | 28742560 | FUSE 15A (#28742560) use 290860 |
| 16 | ||
| 17 | 30477101 | BRACKET RH (#30477101) USE 304771015 |
| 18 | 30477200 | BRACKET LH (#30477200) |
| 19 | 98622310 | ALLEN BOLT (#98622310) |
| 20 | 61013800 | SPRING WASHER (#61013800) |
| 21 | 92630206 | NUT (#92630206) |
| 22 | 30746360 | PLATE A (#30746360) |
| 23 | 98682316 | ALLEN BOLT (#98682316) |
| 24 | 95100118 | WASHER (#95100118) |
| 25 | 91180607 | SPACER (#91180607) |
| 26 | 91551080 | GROMMET (#91551080) |
| 27 | 30747310 | T/L HARNESS (#30747310) |
| 28 | 28753145 | #26 Turn ind.harness (#28753145) |
| 29 | 03704540 | BATTERY B (#03704540) |
| 29 | 28704545 | #01 Battery VARTA 530.30 12V-30A (#28704545) |
| 30 | 14707000 | BATTERY TRAY (#14707000) |
| 31 | 14705350 | BATTERY WEDGE (#14705350) |
| 32 | 19704800 | BATTERY STRAP (#19704800) |
| 33 | 19748000 | CABLE (#19748000) |
| 34 | 19707100 | CAP (#19707100) |
| 35 | 19748400 | CABLE (#19748400) |
| 36 | 14609650 | TIE WRAP (#14609650) |
| 37 | 30732400 | RELAY HOLDER (#30732400) |
| 38 | 30732200 | FUSE HOLDER (#30732200) |
| 39 | 30756100 | FLASHER HOLDER (#30756100) |
