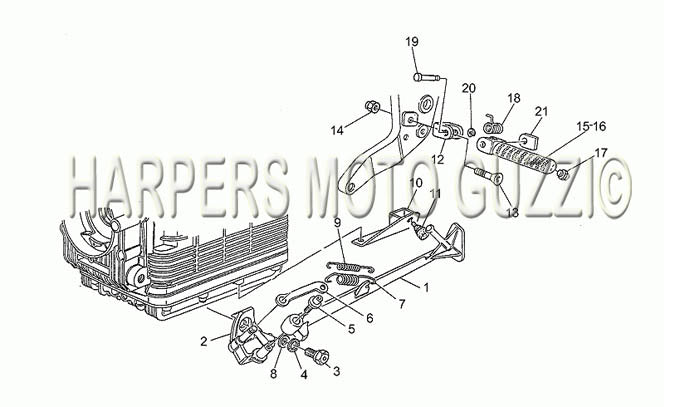

1996 Daytona Racing 1000 Foot Rests Lateral Stand
| Position | Part Number | Description |
|---|---|---|
| 1 | 30432145 | SIDE STND GREY A (#30432145) |
| 2 | 30433400 | SIDE STAND BRKT A (#30433400) |
| 3 | 30432801 | SCREW (#30432801) |
| 4 | 95021114 | LOCK WASHER (#95021114) |
| 5 | 30433200 | PIVOT BOLT A (#30433200) |
| 6 | 30432700 | PLATE (#30432700) |
| 7 | 30434001 | SPRING (#30434001) |
| 8 | 95100521 | WASHER (#95100521) |
| 9 | 30434000 | SPRING, SIDE STAND (#30434000) |
| 10 | 30433600 | BRACKET A (#30433600) |
| 11 | 93180575 | BUFFER (#93180575) use 19705900 |
| 12 | 30442705 | FOOTREST BRACKET RH (#30442705) |
| 13 | 98251040 | SCREW (#98251040) |
| 14 | 92630110 | NUT (#92630110) |
| 15 | 30440705 | FOOTREST RH FRONT (#30440705) |
| 16 | 30441805 | FOOTREST (#30441805) |
| 17 | 30441005 | FOOTREST PIN (#30441005) |
| 18 | 30441105 | SPRING (#30441105) |
| 19 | 30442205 | FOOTREST PIN A (#30442205) |
| 20 | 90280006 | E CLIP (#90280006) USE 005965 |
| 21 | 30441605 | FOOTREST SHIM (#30441605) |
