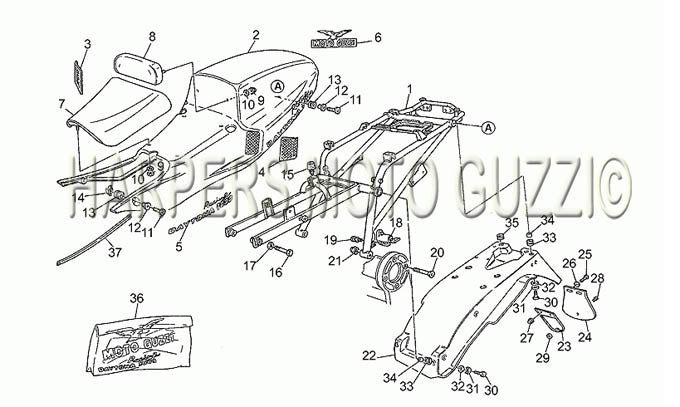

1996 Daytona Racing 1000 Rear Frame
| Position | Part Number | Description |
|---|---|---|
| 1 | 30425601 | FRAME REAR C (#30425601) |
| 2 | 30472645 | SEAT COWL RED C (#30472645) |
| 3 | 30467000 | RH GRILLE A (#30467000) |
| 4 | 30467100 | LH GRILLE A (#30467100) |
| 5 | 30922845 | DECAL LH A (#30922845) |
| 5 | 30923445 | DECAL RH A (#30923445) |
| 6 | 30942300 | DECAL MOTO GUZZ A (#30942300) |
| 7 | 30460500 | SEAT PAD DAYTONA 1000 (#30460500) |
| 8 | 30461500 | BACK PAD (#30461500) |
| 9 | 92630106 | NUT USE 92630707 (#92630106) |
| 10 | 95000206 | WASHER (#95000206) |
| 11 | 98230622 | ALLEN SCREW (#98230622) |
| 12 | 30576100 | BUSHING (#30576100) |
| 13 | 91551010 | GROMMET (#91551010) |
| 14 | 92660601 | CAGE NUT (#92660601) |
| 15 | 19461650 | RUBBER PAD (#19461650) |
| 16 | 98052456 | BOLT A (#98052456) |
| 17 | 14615901 | WASHER (#14615901) |
| 18 | 66466815 | HELMET LOCK (#66466815) |
| 19 | 66468115 | SECURITY BOLT (#66468115) |
| 20 | 98251070 | ALLEN SCREW (#98251070) |
| 21 | 92630110 | NUT (#92630110) |
| 22 | 30437000 | REAR FENDER (#30437000) |
| 23 | 30438102 | FLAP SUPPORT A (#30438102) |
| 24 | 28438060 | MUD FLAP REAR (#28438060) |
| 25 | 98230620 | ALLEN BOLT (#98230620) |
| 26 | 95001206 | WASHER (#95001206) |
| 27 | 92630207 | NUT NYLOC \ (#92630207) |
| 28 | 23922210 | FASTENER (#23922210) |
| 29 | 95100123 | WASHER (#95100123) |
| 30 | 98610320 | ALLEN BOLT A (#98610320) |
| 31 | 14217901 | LOCK WASHER (#14217901) USE AP8152105 |
| 32 | 95100141 | WASHER (#95100141) |
| 33 | ||
| 34 | 91180608 | SPACER (#91180608) |
| 35 | 91551080 | GROMMET (#91551080) |
| 36 | 30923345 | DECAL SET GOLD A (#30923345) |
| 37 | 00823931080 | PVC GASKET (#00823931080) |
