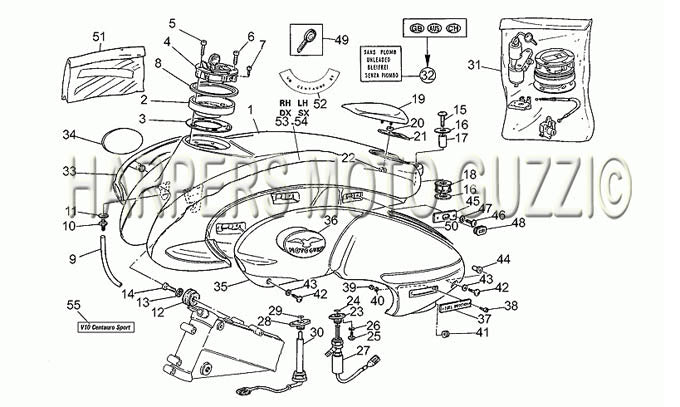

1997 1999 V 10 Centauro 1000 Fuel Tank
| Position | Part Number | Description |
|---|---|---|
| 1 | 02100200 | GAS TANK BARE D (#02100200) |
| 1 | 02100201 | FUEL-TANK Burg Centauro (#02100201) |
| 1 | 02100202 | GAS TANK BLACK D (#02100202) |
| 1 | 02100203 | GAS TANK YELLOW D (#02100203) |
| 1 | 02100211 | FUEL-TANK ANTHRA Centauro (#02100211) |
| 1 | 02100212 | FUEL-TANK YELLOW Centauro (#02100212) |
| 1 | 02100230 | FUEL-TANK RED Centauro (#02100230) |
| 1 | 02100231 | FUEL-TANK GREEN Centauro (#02100231) |
| 2 | 02102300 | FLANGE (#02102300) |
| 2 | 02102304 | FLANGE USE 02102300 (#02102304) |
| 3 | 02102400 | #02 Gasket (#02102400) |
| 4 | 01103920 | FUEL FILLER CAP B (#01103920) USE 01103960 |
| 5 | 98620230 | SCREW (#98620230) |
| 6 | 98622210 | SCREW (#98622210) |
| 7 | 98622215 | ALLEN BOLT (#98622215) |
| 8 | 01101700 | GAS CAP GASKET (#01101700) |
| 9 | 00823944050 | HOSE (#00823944050) |
| 10 | 30103730 | UNION (#30103730) |
| 11 | 30104630 | GASKET (#30104630) |
| 12 | 66103415 | RUBBER MOUNT (#66103415) |
| 13 | 14615901 | WASHER (#14615901) |
| 14 | 98622420 | ALLEN BOLT A (#98622420) |
| 15 | 98230845 | ALLEN BOLT (#98230845) |
| 16 | 95100239 | WASHER (#95100239) |
| 17 | 91180824 | SPACER A (#91180824) |
| 18 | 02107100 | TANK GROMMET (#02107100) |
| 19 | 02466200 | TANK PAD A (#02466200) |
| 20 | 91180605 | SPACER (#91180605) |
| 21 | 02462400 | TANK PLATE A (#02462400) |
| 22 | 92630206 | NUT (#92630206) |
| 23 | 30101830 | FLANGE A (#30101830) |
| 24 | 90706116 | O RING (#90706116) |
| 25 | 98230510 | ALLEN BOLT (#98230510) |
| 26 | 29217960 | WASHER (#29217960) |
| 27 | 02105300 | FUEL VALVE B (#02105300) |
| 27 | 03105300 | PETCOCK-ELECTRIC 60 DEGREES (#03105300) |
| 28 | 02101800 | FLANGE A (#02101800) |
| 29 | 90706171 | O RING (#90706171) |
| 30 | 01103001 | FUEL SENDER A (#01103001) |
| 30 | 03103000 | 1100 EV FUEL LEVEL SENSOR (#03103000) |
| 31 | 02736800 | LOCK SET(#02736800) |
| 32 | 29995735 | DECAL UNLEADED A (#29995735) |
| 33 | 02570200 | PANEL RH BARE B (#02570200) |
| 33 | 02570201 | PANEL RH SILVER C (#02570201) |
| 33 | 02570202 | PANEL RH DARK GREY C (#02570202) |
| 33 | 02570230 | SIDE RH RED C (#02570230) |
| 33 | 02570231 | SIDE RH GREEN C (#02570231) |
| 34 | 02917300 | BADGE CENTAURO (#02917300) |
| 35 | 02570403 | COVER LH BARE A (#02570403) |
| 35 | 02570404 | SIDE LH SILVER A (#02570404) |
| 35 | 02570405 | SIDE LH ANTHR B (#02570405) |
| 35 | 02570432 | SIDE LH RED A (#02570432) |
| 35 | 02570433 | COVER LH GREEN A (#02570433) |
| 36 | 02917400 | BADGE CENTAURO (#02917400) |
| 37 | 02586001 | BADGE FI (#02586001) |
| 38 | 98280311 | SCREW A (#98280311) |
| 39 | 92601003 | NUT A (#92601003) |
| 40 | 95000203 | WASHER A (#95000203) |
| 41 | 02572900 | GROMMET (#02572900) |
| 42 | 98230515 | ALLEN SCREW (#98230515) USE 98370515 |
| 43 | 30577800 | NYLON WASHER (#30577800) |
| 44 | 93231605 | FASTENER (#93231605) |
| 45 | 02103600 | FUEL TANK PLATE (#02103600) |
| 48 | 02573900 | GROMMET (#02573900) |
| 49 | 30735500 | IGNITION KEY BLANK (#30735500) |
| 50 | 02573800 | MOULDING (#02573800) |
| 51 | 02923330 | DECAL SET C (#02923330) |
| 52 | 02924010 | TANK ADHESIVE A (#02924010) |
| 53 | 02923530 | DECAL TANK RH A (#02923530) |
| 54 | 02923630 | DECAL TANK LH A (#02923630) |
| 55 | 02924030 | DECAL CENT SPT A (#02924030) |
