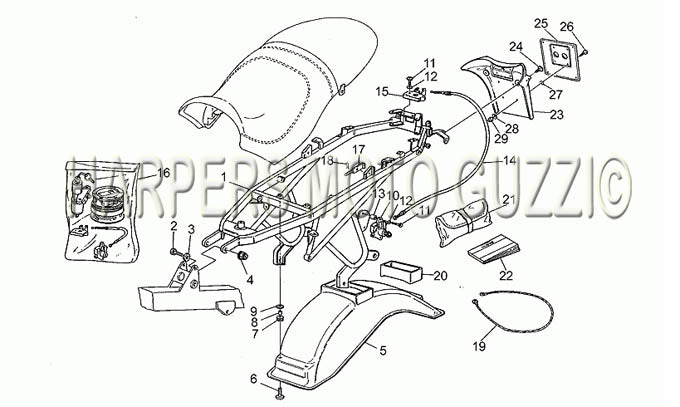

1997 1999 V 10 Centauro 1000 Rear Body Rear Fairing
| Position | Part Number | Description |
|---|---|---|
| 1 | 02410200 | FRAME-REAR X (#02410200) |
| 1 | 02410210 | FRAME-REAR D (#02410210) |
| 2 | 98054525 | BOLT (#98054525) |
| 3 | 95004210 | WASHER (#95004210) |
| 4 | 92660210 | NUT (#92660210) |
| 5 | 02437000 | FENDER REAR (#02437000) |
| 6 | 98230622 | ALLEN SCREW (#98230622) |
| 7 | ||
| 8 | 91180608 | SPACER (#91180608) |
| 9 | 95100141 | WASHER (#95100141) |
| 10 | 02468100 | LOCK- SEAT (#02468100) |
| 11 | 98230625 | ALLEN SCREW A (#98230625) |
| 12 | 14217901 | LOCK WASHER (#14217901) USE AP8152105 |
| 13 | 91110712 | SPACER A (#91110712) |
| 14 | 02468800 | SWEAT LATCH CABLE (#02468800) |
| 15 | 02468600 | LATCH-SEAT (#02468600) |
| 16 | 02736800 | LOCK SET(#02736800) |
| 17 | 02466700 | CABLE PLATE (#02466700) |
| 18 | 02466900 | SECURITY PIN (#02466900) |
| 19 | 02466800 | CABLE ASSY A (#02466800) |
| 20 | 02476400 | TOOL TRAY (#02476400) |
| 21 | 02909900 | TOOL KIT (#02909900) |
| 22 | 02900000 | O MANL CENTAURO A (#02900000) |
| 23 | 02438600 | TAG HOLDER A (#02438600) |
| 24 | 98230616 | SCREW (#98230616) |
| 25 | 39474600 | NUMBER PLATE HOLDER (#39474600) |
| 26 | 98054212 | BOLT (#98054212) |
| 27 | 90706035 | GROMMET (#90706035) |
| 28 | 95000205 | WASHER (#95000205) |
| 29 | 92630105 | NUT (#92630105) |
