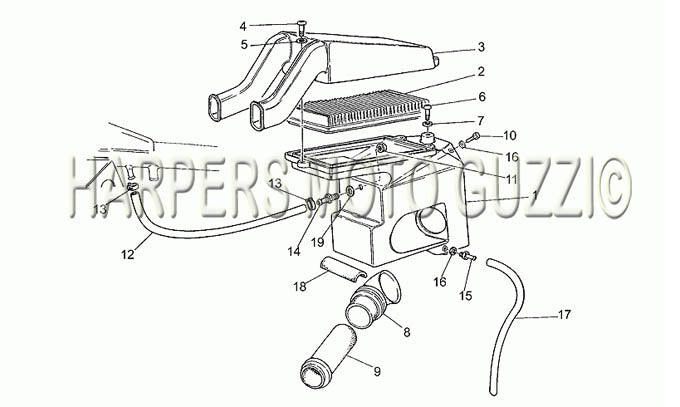

1997 2000 California EV (v11 EV Usa) 1100 Frame Air Filter
| Position | Part Number | Description |
|---|---|---|
| - | 98620230 | SCREW (#98620230) |
| 1 | 30114060 | AIR FILTER BOX A (#30114060) |
| 2 | 30113600 | AIR FILTER (#30113600) |
| 3 | 30113460 | AIRBOX COVER (#30113460) |
| 4 | 98620225 | SCREW A (#98620225) |
| 5 | 95000205 | WASHER (#95000205) |
| 6 | 98230612 | ALLEN SCREW (#98230612) |
| 7 | 61013800 | SPRING WASHER (#61013800) |
| 8 | 30114660 | CONNECTOR (#30114660) |
| 9 | 30114560 | INTAKE TUBE (#30114560) |
| 10 | 98054210 | BOLT (#98054210) |
| 11 | 92660208 | FLANGED NUT (#92660208) |
| 12 | 823956080 | TUBE (#823956080) USE 00823956080 |
| 13 | 93305017 | HOSE CLAMP (#93305017) |
| 14 | 29116960 | AIRBOX FITTING (#29116960) |
| 15 | 29115860 | AIRBOX FITTING (#29115860) |
| 16 | 90714053 | GASKET A (#90714053) |
| 17 | 823944050 | HOSE (#823944050) USE 00823944050 |
| 18 | 95985223 | RUBBER PAD A (#95985223) |
| 19 | 90714082 | FIBER WASHER USE 1215 4200 CRUSH WASHER (#90714082) |
