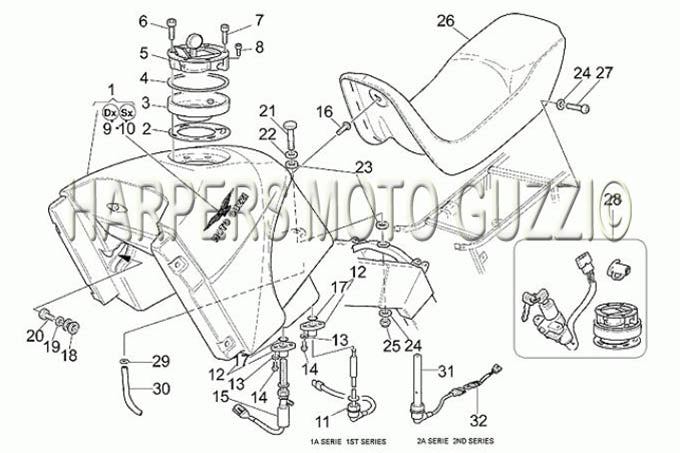

1998 2002 Quota ES 1100 Fuel Tank
| Position | Part Number | Description |
|---|---|---|
| 1 | 30100224 | FUELTANK BARE (#30100224) |
| 1 | 89000274 | Fuel tank, sand/yellow (#89000274) |
| 1 | 89000275 | GAS TANK SAND/BLUE (#89000275) |
| 1 | 89000276 | Fuel tank, sand/brown (#89000276) |
| 1 | 89000277 | GAS TANK BLACK QUOTA (#89000277) |
| 1 | ||
| 2 | 02102400 | #02 Gasket (#02102400) |
| 3 | 02102300 | FLANGE (#02102300) |
| 4 | 01101700 | GAS CAP GASKET (#01101700) |
| 5 | 01103920 | FUEL FILLER CAP B (#01103920) USE 01103960 |
| 6 | 98620230 | SCREW (#98620230) |
| 7 | 98622210 | SCREW (#98622210) |
| 8 | 98622215 | ALLEN BOLT (#98622215) |
| 9 | 01917800 | DECAL RH A (#01917800) |
| 10 | 01917900 | DECAL LH (#01917900) |
| 11 | 30103030 | FUEL SENSOR (#30103030) |
| 12 | 02101800 | FLANGE A (#02101800) |
| 12 | 30101830 | FLANGE A (#30101830) |
| 13 | 29217960 | WASHER (#29217960) |
| 14 | 98230510 | ALLEN BOLT (#98230510) |
| 15 | 03105300 | PETCOCK-ELECTRIC 60 DEGREES (#03105300) |
| 16 | 30103225 | SCREW (#30103225) |
| 17 | 90706116 | O RING (#90706116) |
| 17 | 90706171 | O RING (#90706171) |
| 18 | 91551166 | QUOTA TANK GROMMET (#91551166) |
| 19 | 95100256 | WASHER (#95100256) |
| 20 | 98054412 | BOLT (#98054412) |
| 21 | 98052355 | BOLT (#98052355) |
| 21 | 98052360 | SCREW 6X60MM (#98052360) |
| 22 | 95100121 | WASHER (#95100121) |
| 22 | 95100141 | WASHER (#95100141) |
| 23 | 93110065 | QUOTA TANK GROMMET (#93110065) |
| 23 | 93110082 | RUBBER WASHER (#93110082) |
| 24 | 95000206 | WASHER (#95000206) |
| 25 | 92630106 | NUT USE 92630707 (#92630106) |
| 25 | 92660007 | NUT(#92660007) |
| 26 | 30460525 | SADDLE SEAT ASSY Quota (#30460525) |
| 27 | 98230816 | SCREW (#98230816) |
| 28 | 30736825 | COMBINED UNIT C (#30736825) |
| 29 | 61108500 | CLIP (#61108500) |
| 30 | 00823944050 | HOSE (#00823944050) |
| 31 | 01103000 | FUEL LEVEL SENSOR (#01103000) |
| 32 | 30759725 | FUEL GAUGE ADAPTOR (#30759725) |
