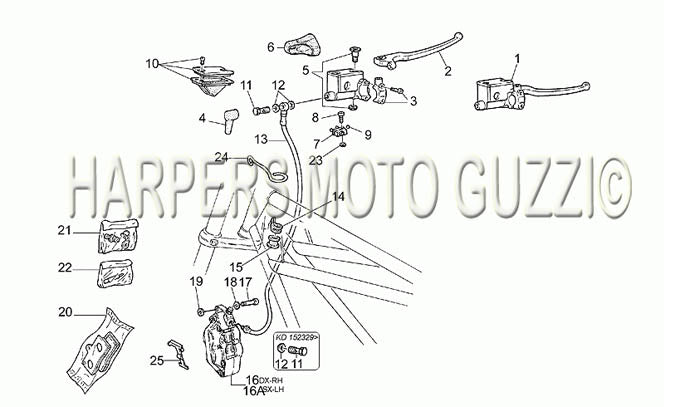

1999 2001 California Jackal 1100 Front Brake System
| Position | Part Number | Description |
|---|---|---|
| 1 | 30660180 | MASTER CYL ASSY (#30660180) |
| 2 | 30605680 | BRAKE LEVER A (#30605680) |
| 3 | 27664075 | HALF CLAMP (#27664075) |
| 4 | 39663801 | DUST CAP (#39663801) |
| 5 | 27604815 | LEVER PIN (#27604815) |
| 6 | 27663615 | RUBBER USE BREMBO #110.3530.40 (#27663615) |
| 7 | 30749860 | MICROSWITCH - (#30749860) |
| 8 | 98200214 | SCREW (98200214) (#98200214) |
| 9 | 92295708 | BALL (#92295708) |
| 10 | 27661115 | MASTER CYL LID KIT (#27661115) |
| 11 | 95990028 | SCREW (#95990028) |
| 12 | 25656100 | WASHER, ALUMINUM (#25656100) |
| 13 | 03657100 | BRAKE HOSE (#03657100) |
| 13 | 03657101 | BRAKE LINE (#03657101) |
| 14 | 03658400 | CLAMP (#03658400) |
| 15 | 03658201 | BUSHING (#03658201) |
| 15 | 17658260 | RUBBER RING (#17658260) |
| 16 | 01652230 | CALIPER LH (#01652230) |
| 16 | 03652200 | CALIPER-GREY (#03652200) |
| 17 | 98622530 | BOLT (#98622530) |
| 17 | 98623530 | BOLT (#98623530) |
| 18 | 19149800 | WASHER (#19149800) USE AP8152220 |
| 19 | 95100332 | SHIM 0.5 MM (#95100332) |
| 19 | 95100333 | SHIM 0.8 MM (#95100333) |
| 20 | 01654630 | BRAKE PADS, PR (#01654630) |
| 20 | 30654602 | BRAKE PADS SET PR (#30654602) USE FA95 |
| 21 | 01659230 | BLEEDING OVERHAUL UNIT (#01659230) |
| 21 | 30659200 | BLEEDER SCREW KIT (#30659200) |
| 22 | 01659130 | BLEEDING PAD PIN (#01659130) |
| 22 | 30659102 | BRAKE PIN KIT (#30659102) |
| 23 | 92601002 | NUT (#92601002) |
| 24 | 03659700 | HOSE GUIDE (#03659700) |
| 25 | 01659131 | FRT CALIPER SPRING (#01659131) |
