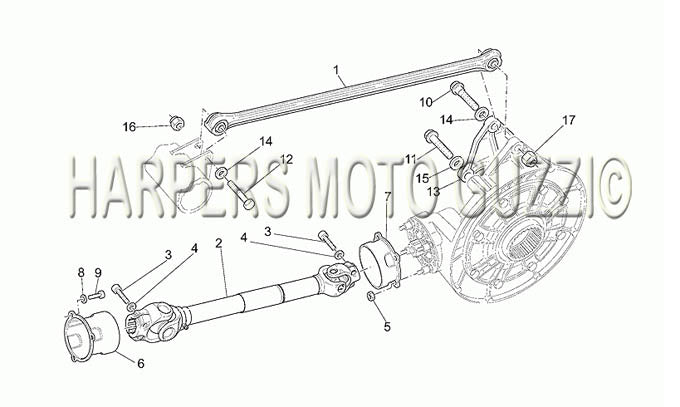

2001 2002 V 11 Le Mans sport Naked 1100 Transmission Complete II
| Position | Part Number | Description |
|---|---|---|
| 1 | 01358840 | Complete reaction rod black (#01358840) |
| 2 | 01358730 | Drive Shaft (#01358730) |
| 3 | 98832430 | ALLEN BOLT (#98832430) |
| 4 | 14615901 | WASHER (#14615901) |
| 5 | 92630506 | NUT (#92630506) |
| 6 | 01358640 | COVER FRONT (#01358640) |
| 7 | 01358340 | COVER REAR (#01358340) |
| 8 | 14217901 | LOCK WASHER (#14217901) USE AP8152105 |
| 9 | 98682316 | ALLEN BOLT (#98682316) |
| 10 | 30357800 | PIVOT PIN A (#30357800) |
| 11 | 04558700 | SCREW (#04558700) |
| 12 | 01357730 | screw M10x55 (#01357730) |
| 13 | 01351040 | OUTER PLATE (#01351040) |
| 14 | 19149800 | WASHER (#19149800) USE AP8152220 |
| 15 | 95008213 | Washer, 12.2x20x2 (#95008213) |
| 16 | 92630110 | NUT (#92630110) |
| 17 | 92630410 | NUT A (#92630410) |
