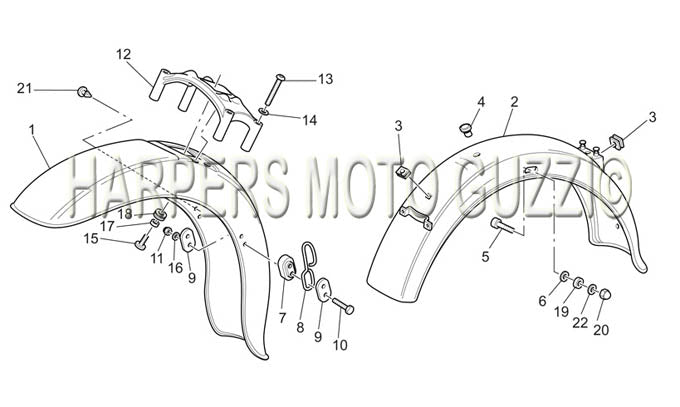

2002 California Stone metal PL 1100 Front Rear Mudguard
| Position | Part Number | Description |
|---|---|---|
| 1 | 03434340 | FRONT FNDR BARE A (#03434340) |
| 1 | 03434351 | FRONT FNDR MATTE GREY (#03434351) |
| 1 | 89000403 | FRONT FNDR BLACK (#89000403) |
| 2 | 03437051 | REAR FENDER-GREY 2002 STONE (#03437051) |
| 2 | 304370602 | REAR FENDER (#304370602) |
| 2 | 89000405 | REAR FNDR BLACK (#89000405) |
| 3 | 91551099 | RUBBER (#91551099) |
| 4 | 93180080 | PLUG (#93180080) |
| 5 | 98350460 | SCREW (#98350460) |
| 6 | 14615901 | WASHER (#14615901) |
| 7 | 03436400 | MOUNTING BLOCK (#03436400) |
| 8 | 03436500 | EYELET (#03436500) |
| 9 | 03436300 | PLATE (#03436300) |
| 10 | 98082225 | Screw (#98082225) |
| 11 | 92787205 | NUT (#92787205) |
| 12 | 03436645 | FORK BRACE(after use 03436600) (#03436645) |
| 13 | 98370850 | Screw (#98370850) |
| 14 | 95008208 | WASHER (#95008208) |
| 15 | 98370622 | BOLT A (#98370622) |
| 16 | 95000205 | WASHER (#95000205) |
| 17 | 30576100 | BUSHING (#30576100) |
| 18 | 91551010 | GROMMET (#91551010) |
| 19 | 03435550 | SPACER, REAR FENDER (#03435550) |
| 20 | 92787008 | NUT (#92787008) USE 860651 |
| 21 | 93180072 | RUBBER A (#93180072) |
