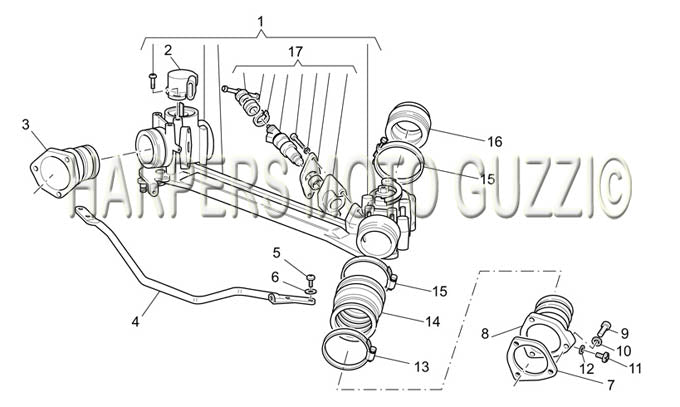

2002 V 11 Le Mans 1100 Throttle Body
| Position | Part Number | Description |
|---|---|---|
| 1 | 01112560 | Throttle Assembly (#01112560) |
| 2 | 01530500 | POTENTIOMETER OR THROTTLE POSITION SENSOR (#01530500) |
| 3 | 01115000 | MANIFOLD RH (#01115000) |
| 4 | 01110530 | THROTTLE BODY STAY (#01110530) |
| 5 | 98350210 | Screw (#98350210) |
| 6 | 29217960 | WASHER (#29217960) |
| 7 | 28115560 | MANIFOLD GASKET (#28115560) |
| 8 | 01115001 | MANIFOLD LH (#01115001) |
| 9 | 98682325 | BOLT (#98682325) |
| 10 | 95008206 | WASHER (#95008206) |
| 11 | 98310609 | Screw (#98310609) |
| 12 | 95100116 | WASHER (#95100116) |
| 13 | 93305057 | CLAMP (#93305057) |
| 14 | 01114300 | RUBBER BOOT NLA (#01114300) USE 01114390 |
| 15 | 93305061 | CLAMP (#93305061) |
| 16 | 01114500 | THROTTLE BODY SLEEVE (#01114500) |
| 17 | 01530504 | INJECTOR KIT (#01530504) |
