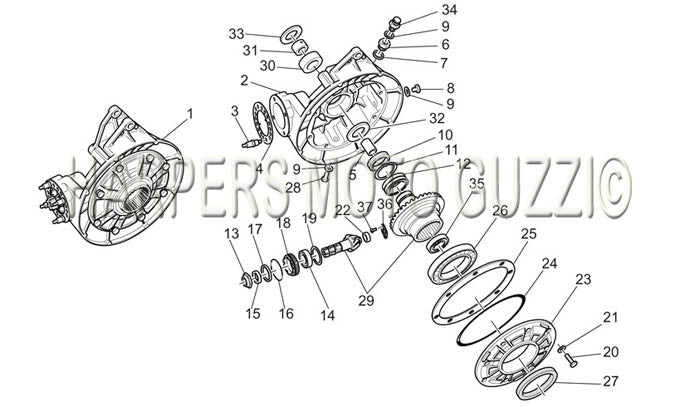

2003 2004 V 11 1100 Transmission Complete II
| Position | Part Number | Description |
|---|---|---|
| 1 | 01350290 | REAR DRIVE COMPLETE V11 03 (#01350290) |
| 2 | 01350390 | REAR DRIVE HOUSING (#01350390) |
| 3 | 04357900 | SCREW (#04357900) |
| 4 | 04358700 | PLATE (#04358700) |
| 5 | 01356930 | SPACER (#01356930) |
| 6 | 01351230 | REAR DRIVE FILLER CAP (#01351230) |
| 7 | 01154230 | GASKET (#01154230) |
| 8 | 95980214 | DRAIN PLUG (#95980214) |
| 9 | 01528930 | SEALING WASHER (#01528930) |
| 10 | 90413850 | SEAL (#90413850) |
| 11 | 90353040 | CIRCLIP (#90353040) |
| 12 | 92234055 | ROLLER BEARING (#92234055) |
| 13 | 04356700 | PINION NUT (#04356700) |
| 14 | 92201926 | BEARING (#92201926) |
| 15 | 04356800 | SPACER (#04356800) |
| 16 | 90706616 | O RING (#90706616) |
| 17 | 90403257 | SEAL (#90403257) |
| 18 | 04354900 | PINION NUT (#04354900) |
| 19 | 04355300 | SHIM (#04355300) |
| 19 | 04355301 | SHIM (#04355301) |
| 19 | 04355302 | SHIM (#04355302) |
| 19 | 04355303 | SHIM (#04355303) |
| 19 | 04355304 | SHIM (#04355304) |
| 20 | 19357660 | SCREW (#19357660) |
| 21 | 14615901 | WASHER (#14615901) |
| 22 | 92231216 | ROLLER BEARING (#92231216) |
| 23 | 04350400 | REAR DRIVE COVER (#04350400) |
| 24 | 90706958 | O RING (#90706958) |
| 25 | 04355100 | SHIM (#04355100) |
| 25 | 04355101 | SHIM (#04355101) |
| 25 | 04355102 | SHIM (#04355102) |
| 25 | 04355103 | SHIM (#04355103) |
| 25 | 04355104 | SHIM (#04355104) |
| 25 | 04355105 | SHIM (#04355105) |
| 25 | 04355106 | SHIM (#04355106) |
| 26 | 92208014 | BEARING COVER (#92208014) |
| 27 | 90417085 | SEAL REAR DRIVE OUTPUT SEAL Viton (#90417085) |
| 28 | 31003766 | DRAIN PLUG (#31003766) |
| 29 | 01354630 | RING&PINION SET (#01354630) |
| 30 | 92252225 | ROLLER BEARING (#92252225) |
| 31 | 92259025 | INNER RACE (#92259025) |
| 32 | 04351900 | INNER WASHER (#04351900) |
| 33 | 37359005 | OUTER WASHER (#37359005) |
| 34 | 19206501 | VENT PLUG (#19206501) |
| 35 | 92201821 | BEARING (#92201821) |
| 36 | 04353801 | Secruring Flang (#04353801) |
| 37 | 98280614 | SCREW (#98280614) |
