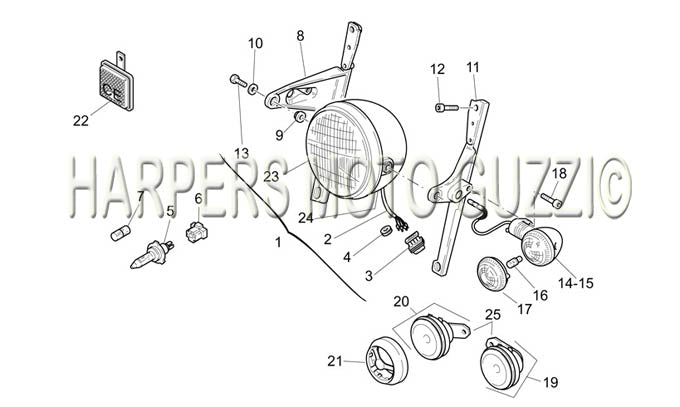

2003 2005 California EV PL Cat. 1100 Front Lights
| Position | Part Number | Description |
|---|---|---|
| 1 | 03740531 | HEADLAMP ASSY D (#03740531) |
| 1 | 03740535 | USE 03740531 (#03740535) |
| 2 | 02746900 | H/L HARNESS (#02746900) |
| 3 | 01756100 | CONNECTOR 4 WAY (#01756100) |
| 4 | 91551105 | GROMMET (#91551105) |
| 5 | 93450232 | CAL H/L BULB 60/55 (#93450232) USE 292723 |
| 6 | 01756220 | CONNECTOR 3 WAY (#01756220) |
| 7 | 93450119 | BULB 12V (#93450119) USE 163015 |
| 8 | 03496130 | LAMP MOUNT RH (#03496130) |
| 9 | 14439800 | SPACER (#14439800) |
| 10 | 95008208 | WASHER (#95008208) |
| 11 | 03496230 | LAMP MOUNT LH B (#03496230) |
| 12 | 98692318 | ALLEN SCREW (#98692318) |
| 13 | 98064425 | BOLT (#98064425) |
| 14 | ||
| 15 | ||
| 16 | 93450127 | T/SIG. BULB - CLEAR (#93450127) |
| 17 | 31753765 | SIGNAL LENS AMBER (#31753765) USE AP8124111 |
| 18 | 98682314 | Screw (#98682314) |
| 19 | 01743790 | Horn, Hightone (#01743790) |
| 20 | 01743791 | Horn, Lowtone (#01743791) |
| 21 | 03744760 | Horn Mask 03 EV Touring (#03744760) |
| 22 | 14781670 | REFLECTOR (#14781670) |
| 23 | 03740430 | OPTICAL GROUP LENS & RIM ONLY. USA (#03740430) |
| 23 | 03740431 | OPTICAL FOR LH DRIVING (#03740431) use 29740500 |
| 24 | 03740438 | HEAD LIGHT SHELL (#03740438) |
| 25 | 01744200 | Clamp (#01744200) |
