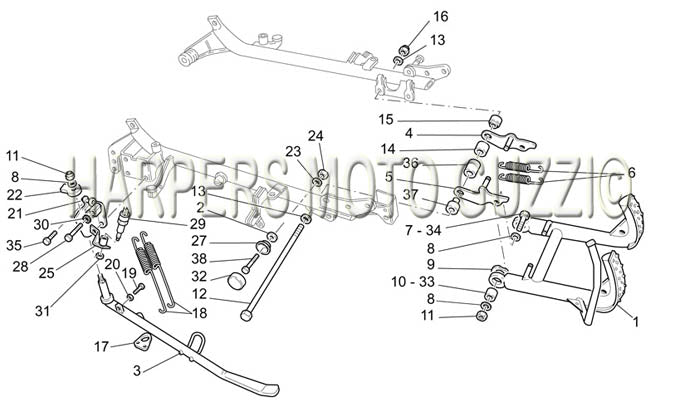

2003 2005 California EV PL Cat. 1100 Stands
| Position | Part Number | Description |
|---|---|---|
| 1 | 03430311 | CENTER STAND (#03430311) |
| 2 | 03013800 | WAVE WASHER (#03013800) |
| 3 | 03432070 | SIDE STAND, Chrome (#03432070) |
| 4 | 03432970 | RH Plate (#03432970) |
| 5 | 03433270 | LH Plate (#03433270) |
| 6 | 03434011 | SPRING (#03434011) |
| 7 | 98082545 | BOLT (#98082545) |
| 8 | 95008210 | Washer (#95008210) |
| 9 | 03433400 | WASHER (#03433400) |
| 10 | 14433500 | BUSHING (#14433500) |
| 11 | 92630110 | NUT (#92630110) |
| 12 | 03429600 | Rear Bolt (#03429600) |
| 13 | 95008313 | Washer, 13X24X2.5 (#95008313) |
| 14 | 30429960 | SPACER A (#30429960) |
| 15 | 30429860 | SPACER (#30429860) |
| 16 | 92606312 | Nut (#92606312) |
| 17 | 18432760 | PLATE (#18432760) |
| 18 | 03434070 | SPRING, Sidestand (#03434070) |
| 19 | 98084216 | Screw (#98084216) |
| 20 | 92606205 | LOCK NUT (#92606205) |
| 21 | 03433470 | Bracket (#03433470) |
| 22 | 03432740 | STAND RETAINER (#03432740) |
| 23 | 95008306 | WASHER (#95008306) |
| 24 | 92630707 | NUT (#92630707) |
| 25 | 03433850 | SIDE STAND SWITCH MOUNT (#03433850) |
| 27 | 39103500 | PLATE (#39103500) |
| 28 | 98680440 | Screw (#98680440) |
| 29 | 03759150 | SWITCH (#03759150) |
| 30 | ||
| 31 | 92606508 | Nut (#92606508) |
| 32 | 39103400 | RUBBER PAD FOR GAS TANK (#39103400) |
| 33 | 30433560 | BUSHING RH (#30433560) |
| 34 | 98082550 | BOLT (#98082550) |
| 35 | 98682416 | Hex Socket Screw (#98682416) USE 319165 |
| 36 | 30429760 | SPACER LH (#30429760) |
| 37 | 14429900 | SPACER (#14429900) |
| 38 | 98084316 | Screw (#98084316) |
