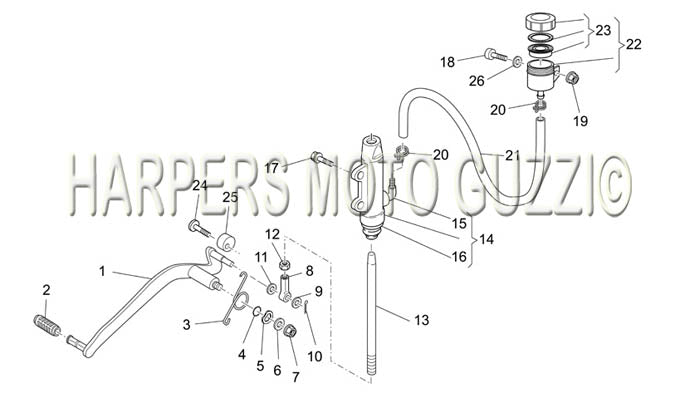

2004 2008 Nevada Classic ie 750 Frame Rear Master Cylinder
| Position | Part Number | Description |
|---|---|---|
| 1 | 32677060 | Rear Brake Lever - Nevada (#32677060) |
| 2 | 14251001 | SHIFT AND BRAKE PEDAL RUBBER (#14251001) |
| 3 | 32667660 | Spring (#32667660) |
| 4 | 90706141 | O RING (#90706141) USE 847180 |
| 5 | 95129260 | SPRING WASHER (#95129260) |
| 6 | 95008310 | Washer (#95008310) |
| 7 | ||
| 8 | 18257551 | BLOCK (#18257551) |
| 9 | 95005311 | WASHER (#95005311) |
| 10 | 95500221 | Split Pin (#95500221) |
| 11 | ||
| 12 | 92609007 | Bolt (#92609007) |
| 13 | 32675260 | Brake Pump Rod - Nevada (#32675260) |
| 14 | ||
| 15 | ||
| 16 | ||
| 17 | ||
| 18 | 98682215 | Hex Socket Screw M5X15 (#98682215) |
| 19 | 92650035 | Nut (#92650035) |
| 20 | ||
| 21 | 00823950050 | TUBE (#00823950050) |
| 22 | ||
| 23 | ||
| 24 | 98682420 | Screw (#98682420) |
| 25 | 32677660 | Cam - Nevada (#32677660) |
| 26 | 95100059 | WASHER (#95100059) |
