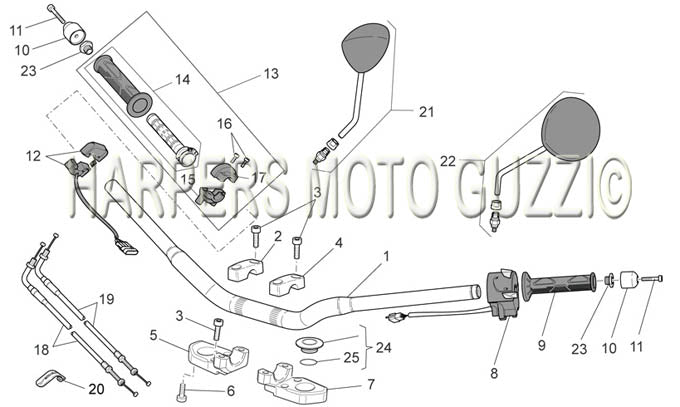

2006 2007 Sport 1200 1200 Handlebar Controls
| Position | Part Number | Description |
|---|---|---|
| 1 | 977746 | Handlebar (#977746) |
| 2 | 977744 | RH U-bolt (#977744) |
| 3 | 98690435 | Hex socket screw (#98690435) |
| 4 | 977745 | LH U-bolt (#977745) |
| 5 | 977742 | RH lower U-bolt (#977742) |
| 6 | 98692425 | Hex Socket Screw (#98692425) |
| 7 | 977743 | LH lower U-bolt (#977743) |
| 8 | 05738030 | Lh Lights Selector (#05738030) |
| 9 | AP8118579 | LH hand grip (#AP8118579 ) |
| 10 | AP8104509 | Anti V. Weight Black (#AP8104509) |
| 11 | 98680340 | Screw (#98680340) |
| 12 | B045021 | RH lights selector (#B045021) |
| 13 | 05603331 | THROTTLE - COMPLETE. (#05603331) |
| 14 | 01603480 | RH Pipe and PR Grips (#01603480) |
| 15 | AP8118502 | THROTTLE CUP (#AP8118502) |
| 16 | AP8118492 | Gas Screw (#AP8118492) |
| 17 | AP8118503 | THROTTLE TUBE (#AP8118503) |
| 18 | 977862 | Gas fastener (#977862) |
| 19 | 977863 | Gas fastener (#977863) |
| 20 | 01609630 | Clamp (#01609630) |
| 20 | 03609600 | RETAINER (#03609600) |
| 21 | AP8104921 | MIRROR RH (#AP8104921) |
| 22 | AP8104922 | MIRROR ROUND LH (#AP8104922) |
| 23 | AP8121520 | External Anti Weight (#AP8121520) |
| 24 | 978111 | FORK PLUG (#978111) |
| 25 | 90706331 | O RING (#90706331) |
