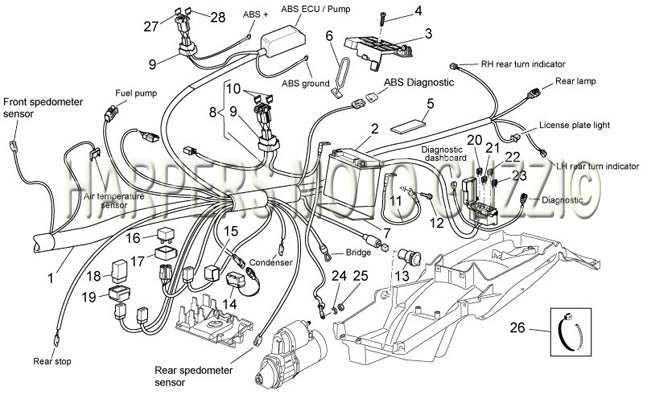

2006 2008 Norge 1200 ie 1200 Electrical System II
| Position | Part Number | Description |
|---|---|---|
| 1 | 977521 | Main wiring harness (#977521) |
| 2 | 05704531 | BATTERY 12V YTX20CH-BS (#05704531) |
| 2 | 883818 | BATTERY (#883818) |
| 3 | 05704630 | Battery Cover (#05704630) |
| 3 | 883819 | CARRIER BATTERY (#883819) |
| 4 | AP8152329 | Self-Tap Screw (#AP8152329) |
| 5 | AP8117200 | Adhesive sponge (#AP8117200) |
| 6 | AP8120177 | Headlight supp.snap (#AP8120177) |
| 7 | AP8144553 | Support rubber part (#AP8144553) |
| 8 | 977520 | Wiring (#977520) |
| 9 | AP8112811 | Rubber Spacer (#AP8112811) |
| 10 | 28742562 | FUSE 30A (#28742562) |
| 11 | 05747930 | Ground-Battery Lead (#05747930) |
| 11 | 978505 | HEARTH CABLE (#978505) |
| 12 | AP8152277 | Screw w/flange (#AP8152277) |
| 13 | AP8124768 | Socket (#AP8124768) |
| 14 | AP8124266 | #14 Inclination sensor (#AP8124266 ) |
| 15 | AP8144046 | Fuel Tank Rubber (#AP8144046) |
| 16 | AP8124869 | INJECTION RELAY (#AP8124869) USE #895481 |
| 17 | AP8220546 | Relay Rubber (#AP8220546) |
| 18 | AP8224462 | STARTER RELAY 12V20A GRISO-NORGE-BREVA (#AP8224462) |
| 19 | AP8220283 | Rubber Spacer (#AP8220283) |
| 20 | 977773 | Fuse 20A (#977773) |
| 21 | 977772 | Fuse 15A (#977772) |
| 22 | 977769 | Fuse 3A (#977769) |
| 23 | 977771 | Fuse 10A (#977771) |
| 24 | 95129131 | Washer (#95129131) |
| 25 | 92609408 | Nut M8x1,25 (#92609408) |
| 26 | 14609650 | TIE WRAP (#14609650) |
| 26 | 30609600 | FASTENER A (#30609600) |
| 27 | 977761 | Fuse (#977761) |
| 28 | 977762 | Fuse (#977762) |
