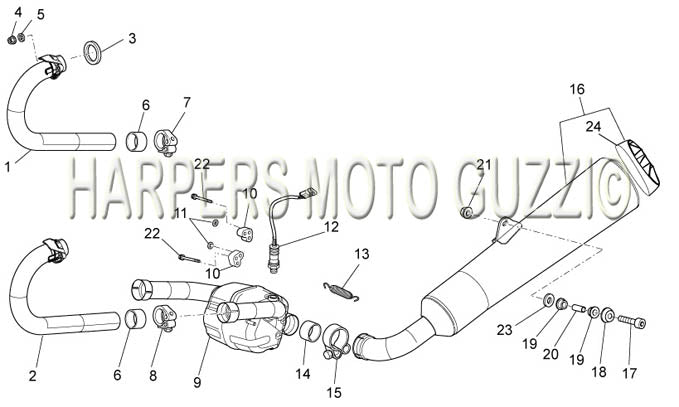

2008 2010 1200 Sport 8v 1200 Exhaust Unit
| Position | Part Number | Description |
|---|---|---|
| 1 | 978916 | #01 RH exhaust pipe (#978916) |
| 2 | 978915 | #02 LH exhaust pipe (#978915) |
| 3 | 976376 | GRISO EXHAUST GASKET (#976376) |
| 4 | 92660021 | Nut (#92660021) |
| 5 | 14615901 | WASHER (#14615901) |
| 6 | 05121630 | Gasket (#05121630) |
| 7 | 976522 | COMPENSATOR RIGHTPIPE WRENCH CLAMP (#976522) |
| 8 | 976523 | CLAMP (#976523) |
| 9 | 883482 | #09 Expansion chamber (#883482) |
| 9 | 883907 | Expansion chamber (#883907) |
| 10 | 05124230 | Rubber Spacer (#05124230) |
| 11 | 90274008 | Washer For Shafts D8 (#90274008) |
| 12 | 32727010 | SENSOR-LAMDA (#32727010) |
| 13 | AP8121170 | Exhaust pipes spring (#AP8121170) |
| 14 | 05128230 | Gasket (#05128230) |
| 15 | 976521 | CLAMP (#976521) |
| 16 | 883908 | Silencer (#883908) |
| 16 | 978287 | #16 Silencer (#978287) |
| 17 | 98680445 | Screw (#98680445) |
| 18 | AP8134378 | Silencer Fixing Bushing (#AP8134378) |
| 19 | AP8144071 | Rubber Exhaust (#AP8144071) |
| 20 | 883079 | SPACER (#883079) |
| 21 | 92650138 | Nut (#92650138) |
| 22 | 05123430 | Rh Hose Clamp (#05123430) |
| 23 | 95005312 | Washer, 8.5x24x2 (#95005312) |
