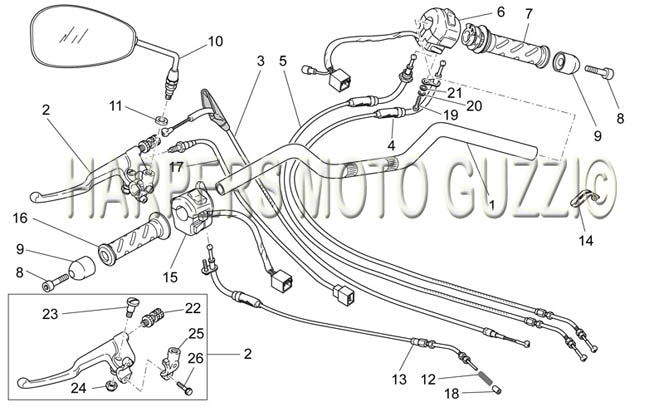

2008 2012 V7 Classic 750 Handlebar Controls
| Position | Part Number | Description |
|---|---|---|
| 1 | 978960 | HANDLE BARS (#978960) |
| 2 | 32605510 | CL LEVER ASSY (#32605510) |
| 3 | 883264 | Clutch cable (#883264) |
| 4 | ||
| 5 | 883263 | THROTTLE CABLE RETURN V7 CLASSIC/NEVADA (#883263) |
| 6 | 32738810 | RH STARTER SWITCH - Breva` (#32738810) |
| 7 | 32603310 | RH Hand Grip - Breva (#32603310) |
| 8 | 98690335 | Screw (#98690335) |
| 9 | 32602860 | ANTI V WEIGHT SILVER (#32602860) |
| 10 | 883802 | GRISO MIRROR LH/RH (#883802) USE 978570 |
| 10 | 978570 | MIRROR (#978570) |
| 11 | 91181003 | SPACER (#91181003) |
| 12 | 94321074 | Spring (#94321074) |
| 13 | 32137060 | Choke Cable - Nevada (#32137060) |
| 14 | 01609630 | Clamp (#01609630) |
| 14 | 03609600 | RETAINER (#03609600) |
| 15 | 883075 | HANDLE BAR SWITCH (#883075) |
| 16 | 32603010 | LH Hand Grip - Breva (#32603010) |
| 17 | 29759150 | SWITCH (#29759150) |
| 18 | 39094200 | RUBBER BLOCK (#39094200) |
| 19 | 98230510 | ALLEN BOLT (#98230510) |
| 20 | 95008305 | Washer (#95008305) |
| 21 | 95021105 | LOCK WASHER (#95021105) |
| 22 | 30602500 | ADJUSTER ASSY (#30602500)USE AP8118348 |
| 23 | AP8213028 | Screw (#AP8213028) |
| 24 | AP8213388 | Self-Locking Nut (#AP8213388)use AP8118490 |
| 25 | 30601060 | BRACKET (#30601060) USE AP 8118349 |
| 26 | 97202325 | Black Screw w/flange (#97202325) |
