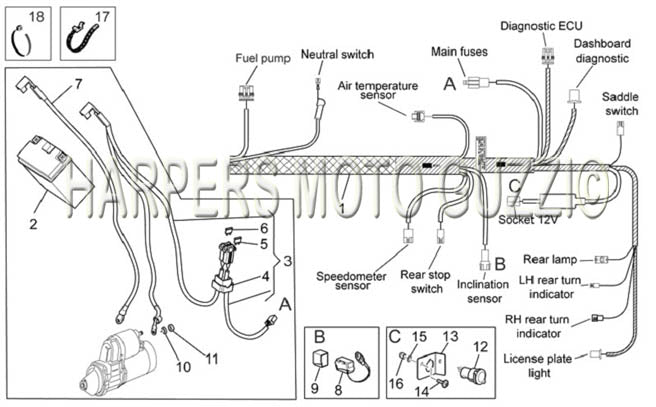

2008 Stelvio 1200 1200 Electrical System II
| Position | Part Number | Description |
|---|---|---|
| 1 | 978448 | WIRE HARNESS MAIN (#978448) |
| 2 | 05704531 | BATTERY 12V YTX20CH-BS (#05704531) |
| 3 | 978648 | Elect. Cable (#978648) |
| 4 | AP8112811 | Rubber Spacer (#AP8112811) |
| 5 | 28742562 | FUSE 30A (#28742562) |
| 6 | 977762 | Fuse (#977762) |
| 7 | 06747900 | GROUND STRAP (#06747900) |
| 8 | AP8124266 | #14 Inclination sensor (#AP8124266 ) |
| 9 | AP8144046 | Fuel Tank Rubber (#AP8144046) |
| 10 | 95129131 | Washer (#95129131) |
| 11 | 92609408 | Nut M8x1,25 (#92609408) |
| 12 | AP8124768 | Socket (#AP8124768) |
| 13 | 883063 | Plate (#883063) |
| 14 | 98350210 | Screw (#98350210) |
| 15 | 95008205 | Washer 5.3mm (#95008205) |
| 16 | 92787205 | NUT (#92787205) |
| 17 | 06609600 | HOSE CLAMP (#06609600) |
| 18 | 14609650 | TIE WRAP (#14609650) |
| 18 | 49609601 | TIE STRAP (#49609601) |
| 18 | 93304390 | TIE WRAP (#93304390) |
