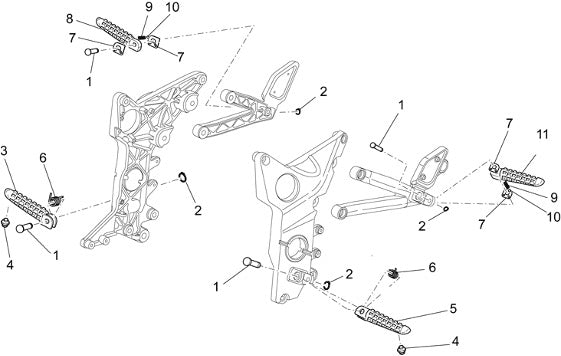

2009 2013 Griso 1200 8v E3 2007 2013 Griso S.E. E3 Foot Rests I
| Position | Part Number | Description |
|---|---|---|
| 1 | AP8121567 | Pin (#AP8121567) |
| 2 | AP8152409 | STOP RING (#AP8152409) |
| 3 | 884095 | RH Foot rests (#884095) |
| 3 | 977822 | RH Foot rests (#977822) |
| 4 | 30441005 | FOOTREST PIN (#30441005) |
| 5 | 884096 | LH Foot rests (#884096) |
| 5 | 977823 | LH FOOT RESTS (#977823) |
| 6 | AP8221277 | FOOT PEG SPRING (#AP8221277) |
| 7 | AP8134451 | Footrest Plate (#AP8134451) |
| 8 | 884097 | RH REAR FOOTREST (#884097) |
| 8 | 977824 | Rear footrest, RH (#977824) |
| 9 | AP8121133 | Coil Compress, Spring (#AP8121133) |
| 10 | AP8101861 | Ball (#AP8101861) |
| 11 | 884098 | LH rear footrest (#884098) |
| 11 | 977825 | Rear footrest, LH (#977825) |
