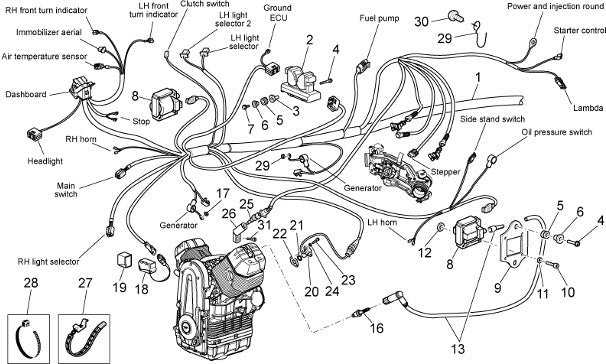

2009 2013 Griso 1200 8v E3 2007 2013 Griso S.E. E3 Frame Electrical System I
| Position | Part Number | Description |
|---|---|---|
| 1 | 978407 | Main wiring harness (#978407) |
| 2 | 883900 | ECU (#883900) |
| 2 | 883905 | ECU (#883905) |
| 2 | 978406 | ECU GRISO 8V (#978406) |
| 3 | ||
| 4 | ||
| 5 | ||
| 6 | ||
| 7 | ||
| 8 | 30716500 | IGNITION COIL (#30716500) |
| 9 | 5716730 | #09 Coil holder (#5716730) |
| 10 | 98682125 | Screw (#98682125) |
| 11 | 95008204 | Washer (#95008204) |
| 12 | 92630104 | NUT (#92630104) |
| 13 | 640912 | HT wire (#640912) USE 642243 |
| 16 | 5717030 | #14 Spark plug NGK PMR8B (#5717030) |
| 17 | ||
| 18 | 584509 | Fuel cut off/ tilt sensor (#584509) |
| 19 | ||
| 20 | 1721600 | #16 Phase/revolution sensor (#1721600) |
| 21 | 90706141 | O RING (#90706141) USE 847180 |
| 22 | 1722700 | #20 Gasket 0,3mm (#1722700) |
| 22 | 1722701 | #17 Gasket 0,4mm (#1722701) |
| 22 | 1722702 | #20 Gasket 0,6mm (#1722702) |
| 22 | 1722703 | #20 Gasket 0,8mm (#1722703) |
| 22 | 1722704 | #17 Gasket 1mm (#1722704) |
| 22 | 1722705 | #20 Gasket 1,5mm (#1722705) |
| 22 | 29722760 | SENSOR GASKET (#29722760) |
| 23 | 98682212 | Hex Socket Screw (#98682212) |
| 24 | 95008205 | Washer 5.3mm (#95008205) |
| 25 | 29729461 | OIL TEMP SENSOR (#29729461) |
| 26 | 976556 | Support (#976556) |
| 27 | ||
| 28 | 14609650 | TIE WRAP (#14609650) |
| 28 | 49609601 | TIE STRAP (#49609601) |
| 28 | 93304390 | TIE WRAP (#93304390) |
| 29 | ||
| 30 | ||
| 31 | 98683520 | SCREW (#98683520) |
