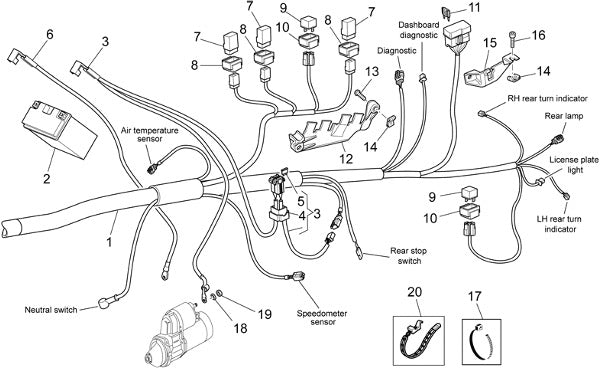

2009 2013 Griso 1200 8v E3 2007 2013 Griso S.E. E3 Frame Electrical System II
| Position | Part Number | Description |
|---|---|---|
| 1 | 978407 | Main wiring harness (#978407) |
| 2 | 5704531 | #02 Battery 12V-20Ah (#5704531) |
| 3 | 32748010 | Wiring - Breva (#32748010) |
| 4 | ||
| 5 | 28742562 | FUSE 30A (#28742562) |
| 6 | ||
| 7 | ||
| 8 | ||
| 9 | ||
| 10 | ||
| 11 | 977769 | Fuse 3A (#977769) |
| 11 | 977772 | Fuse 15A (#977772) |
| 11 | 977773 | Fuse 20A (#977773) |
| 12 | ||
| 13 | ||
| 14 | ||
| 15 | ||
| 16 | 98682215 | Hex Socket Screw M5X15 (#98682215) |
| 17 | 14609650 | TIE WRAP (#14609650) |
| 17 | 49609601 | TIE STRAP (#49609601) |
| 18 | 95129131 | Washer (#95129131) |
| 19 | 92609408 | Nut M8x1,25 (#92609408) |
| 20 |
