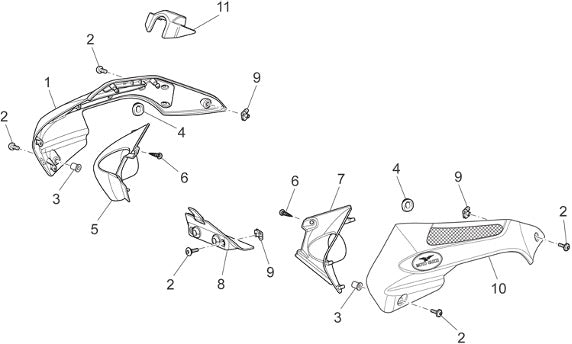

2009 2013 Griso 1200 8v E3 2007 2013 Griso S.E. E3 Front Body Duct
| Position | Part Number | Description |
|---|---|---|
| 1 | 88797300YN1 | RH BLACK AIR DUCT (#88797300YN1) |
| 1 | 97840400BM | *CONVOGLIATORE DX COMPL BIANCO (#97840400BM) |
| 1 | 97840400Y01 | CONVOGLIATORE DX COMPL ROSSO (#97840400Y01) |
| 1 | 97840400Y02 | RH BLACK AIR DUCT (#97840400Y02) |
| 1 | 97840400YV2 | RH BLACK AIR DUCT (#97840400YV2) |
| 2 | AP8152302 | SCREW W/ FLANGE (#AP8152302) USE 2B014101 |
| 3 | 93231605 | FASTENER (#93231605) |
| 4 | AP8220162 | Rubber spacer (#AP8220162) |
| 5 | 06576800 | CHIUSURA ANT. DX CONVOGLIATORE (#06576800) |
| 6 | AP8150413 | Self-Tap Screw (#AP8150413) |
| 7 | 06576900 | CHIUSURA ANT. SX CONVOGLIATORE (#06576900) |
| 8 | 06729800 | PROTEZIONE CENTRALINA (#06729800) |
| 9 | AP8102375 | Clip (#AP8102375) |
| 10 | 88797400YN1 | LH BLACK AIR DUCT (#88797400YN1) |
| 10 | 97840500BM | CONVOGLIATORE SX COMPL BIANCO (#97840500BM) |
| 10 | 97840500Y01 | CONVOGLIATORE SX COMPL ROSSO (#97840500Y01) |
| 10 | 97840500Y02 | LH BLACK AIR DUCT (#97840500Y02) |
| 10 | 97840500YV2 | LH GREEN AIR DUCT (#97840500YV2) |
| 11 | 06783600 | PROTEZIONE BLOCCASTERZO (#06783600) |
