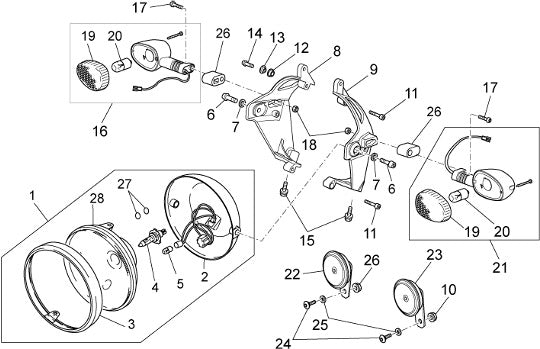

2009 2013 Griso 1200 8v E3 2007 2013 Griso S.E. E3 Headlight Horn
| Position | Part Number | Description |
|---|---|---|
| 1 | 06740500 | HEADLIGHT GRISO (#06740500) |
| 1 | 06740501 | HEAD LIGHT LEFT (#06740501) |
| 1 | 978311 | Headligh (#978311) |
| 1 | 978662 | HEADLAMP (#978662) |
| 2 | 06740200 | HL CAP (#06740200) |
| 2 | 981149 | Head lamp shell (#981149) |
| 3 | 640598 | CHROMIUM PLATED RIM (#640598) |
| 4 | 292723 | BULB 12V-55/60W (#292723) |
| 5 | ||
| 6 | 98700430 | BOLT FOR UPPER U BOLT GRISO 850/1100 (#98700430) |
| 7 | 14615901 | WASHER (#14615901) |
| 8 | 06496100 | RH support (#06496100) |
| 9 | 06496200 | LH support (#06496200) |
| 10 | 92650138 | Nut (#92650138) |
| 11 | 98610335 | BOLT (#98610335) |
| 12 | AP8221023 | T Bush* (#AP8221023) |
| 13 | AP8120675 | Rubber spacer * (#AP8120675) |
| 14 | 98230619 | SCREW (#98230619) |
| 15 | AP8152287 | Screw w/flange (#AP8152287) |
| 16 | 06750600 | TURN SIG RH FRONT/LH REAR (#06750600) |
| 17 | 98690335 | Screw (#98690335) |
| 18 | 92787006 | Nut, 6mmx1.0 (#92787006) |
| 19 | 06753700 | LENS (#06753700) |
| 20 | 93450127 | T/SIG. BULB - CLEAR (#93450127) |
| 21 | 06751601 | TURN SIGNAL (#06751601) |
| 22 | 01743791 | Horn, Lowtone (#01743791) |
| 22 | 883463 | KLAXON (#883463) |
| 23 | 01743790 | Horn, Hightone (#01743790) |
| 23 | 883462 | KLAXON (#883462) |
| 24 | 98350416 | Screw (#98350416) |
| 25 | 95021108 | WASHER (#95021108) |
| 26 | 01753440 | FLASHER SPACER (#01753440) |
| 27 | 883417 | SEAL RING (O-RING) (#883417) |
| 28 | 06740400 | HL OPTICAL GROUP (#06740400) |
