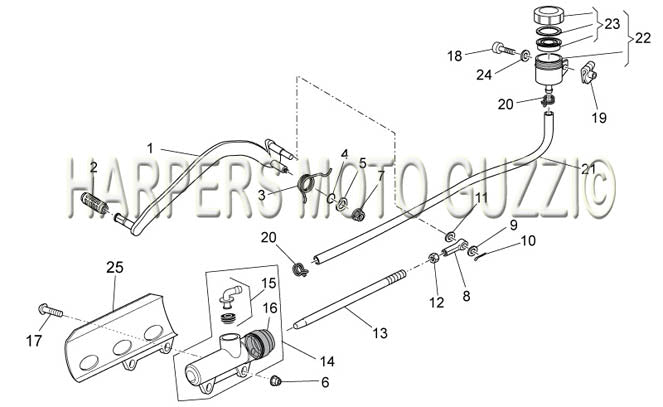

2009 V7 Cafe 750 Frame Rear Master Cylinder
| Position | Part Number | Description |
|---|---|---|
| 1 | 883058 | V7 CLASSIC REAR BR PEDAL (#883058) |
| 2 | 14251001 | SHIFT AND BRAKE PEDAL RUBBER (#14251001) |
| 3 | 978969 | SPRING (#978969) |
| 4 | ||
| 5 | 95005310 | WASHER (#95005310) |
| 6 | 92630206 | NUT (#92630206) |
| 7 | 92660021 | Nut (#92660021) |
| 8 | 18257551 | BLOCK (#18257551) |
| 9 | 95005311 | WASHER (#95005311) |
| 10 | 95500221 | Split Pin (#95500221) |
| 11 | ||
| 12 | 92609007 | Bolt (#92609007) |
| 13 | 978970 | POST BRAKE PUMP DRIVING ROD (#978970) |
| 14 | ||
| 15 | ||
| 16 | ||
| 17 | 98370625 | ALLEN SCREW (#98370625) USE STAB6X25 |
| 18 | 98682215 | Hex Socket Screw M5X15 (#98682215) |
| 19 | ||
| 20 | ||
| 21 | 00823950050 | TUBE (#00823950050) |
| 22 | ||
| 23 | ||
| 24 | 95100059 | WASHER (#95100059) |
| 25 | 01665410 | REAR MASTER CYL. GUARD (#01665410) |
