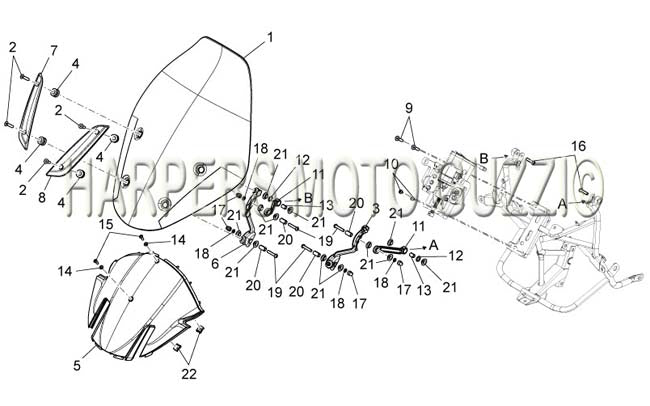

2010 2013 Norge 1200 ie 8v Electro Windscreen II
| Position | Part Number | Description |
|---|---|---|
| 1 | 883810 | Windscreen (#883810) |
| 2 | 655467 | COUNTERSUNK SCREW (#655467) |
| 3 | 653027 | LEFT WINDSHIELD SUPPORT (#653027) |
| 4 | 576565 | GROMMET FOR WINDSCREEN (#576565) |
| 5 | 883811 | STARTER COVER (#883811) |
| 6 | 653028 | RIGHT WINDSHIELD SUPPORT (#653028) |
| 7 | 653157 | RIGHT WINDSHIELD SUPPORT (#653157) |
| 8 | 653156 | LEFT WINDSHIELD SUPPORT (#653156) |
| 9 | 840542 | COUNTERSUNK SOCKED HEAD SCREW (#840542) |
| 10 | 274369 | SCREW (#274369) |
| 11 | 883790 | Connecting rod (#883790) |
| 12 | 271695 | Oil seal for vehicle stand pin (#271695) |
| 13 | 259658 | SPACER (#259658) |
| 14 | AP8144565 | WASHER (#AP8144565) |
| 15 | 98230412 | SCREW (#98230412) |
| 16 | 98370625 | ALLEN SCREW (#98370625) USE STAB6X25 |
| 17 | 479175 | NUT (#479175) |
| 18 | 6966 | Spring washer 6,4x11x0,5 (#6966) |
| 19 | 620365 | SCREW (#620365) |
| 20 | 977644 | SPACER (#977644) |
| 21 | 977645 | WINDSHIELD BUSHING (#977645) |
| 22 | AP8102381 | CLIP M4 (#AP8102381) |
