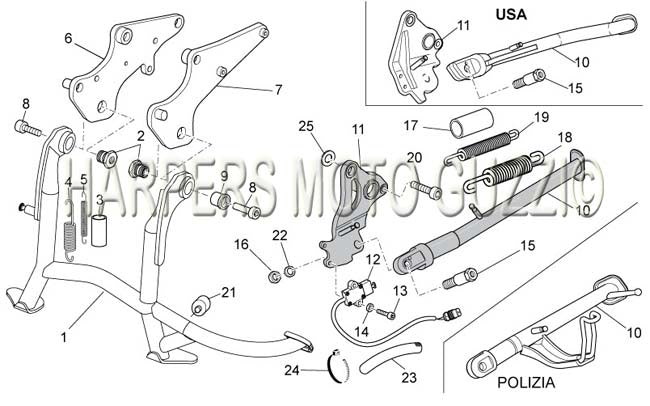

2010 2013 Norge 1200 ie 8v Frame Stands
| Position | Part Number | Description |
|---|---|---|
| - | 883390 | Lateral stand (#883390) |
| - | 897602 | Lateral stand (#897602) |
| - | 977408 | STAND PLATE (#977408) |
| - | ||
| 1 | 883242 | Central stand WITH IP (#883242) |
| 2 | ||
| 3 | ||
| 4 | ||
| 5 | ||
| 6 | 883274 | Rh Plate (#883274) |
| 7 | 883251 | Lh Plate (#883251) |
| 8 | 98682530 | Screw (#98682530) USE AP8150195 |
| 9 | 05429630 | BUSHING (#05429630) |
| 10 | 977093 | SIDE STAND (#977093) |
| 11 | 977080 | Stand plate (#977080) |
| 12 | 639542 | SIDESTAND SWITCH (#639542) |
| 13 | 98612216 | ALLEN BOLT (#98612216) |
| 14 | 95020105 | WASHER (#95020105) |
| 15 | ||
| 16 | ||
| 17 | ||
| 18 | ||
| 19 | ||
| 20 | 98231235 | Hex Socket Screw (#98231235) |
| 21 | ||
| 22 | ||
| 23 | 00823923140 | THERMAL SHEATH (#00823923140) |
| 24 | 14609650 | TIE WRAP (#14609650) |
| 25 | 95008313 | Washer, 13X24X2.5 (#95008313) |
