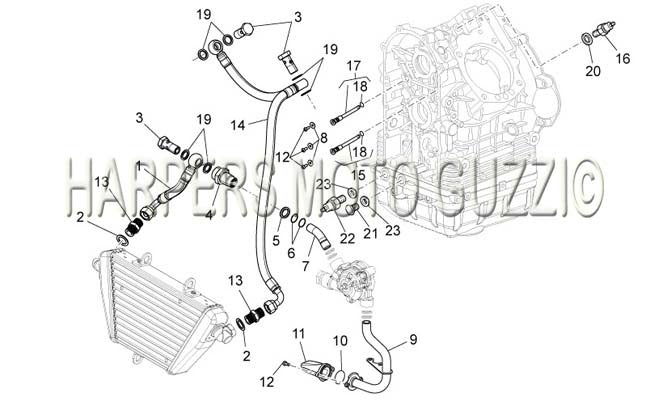

2010 2013 Norge 1200 ie 8v Lubrication
| Position | Part Number | Description |
|---|---|---|
| 1 | 897599 | Feed pipe (#897599) |
| 2 | 01154230 | GASKET (#01154230) |
| 3 | 874223 | SCREW FOR PIPE FITTING (#874223) |
| 4 | 874669 | Nipple (#874669) |
| 5 | 976592 | GASKET (#976592) |
| 6 | 434947 | RING (#434947) |
| 7 | 874646 | PIPE (#874646) |
| 8 | 13763 | #08 Washer (#13763) |
| 9 | 874645 | INTAKE PIPE (#874645) |
| 10 | 969323 | O RING (#969323) |
| 11 | 874655 | INTAKE OIL FILTER (#874655) |
| 12 | 621914 | SCREW (#621914) |
| 13 | 01161331 | REDUCER (#01161331) |
| 14 | 886122 | HEAD CYLINDER DELIVERY OIL PIPE (#886122) |
| 15 | 976680 | LEFT CYLINDER HEAD (#976680) |
| 16 | 978854 | MINIMUM PRESSURE OIL SWITCH (#978854) USE 1D001138 |
| 17 | 976681 | LEFT CYLINDER HEAD (#976681) |
| 18 | 874238 | Circlip (#874238) |
| 19 | 976597 | GASKET (#976597) |
| 20 | 12006400 | ALUM CRUSH WASHER (#12006400) |
| 21 | 95980216 | DRAIN PLUG (#95980216) |
| 22 | 642077 | Thermal switch (#642077) |
