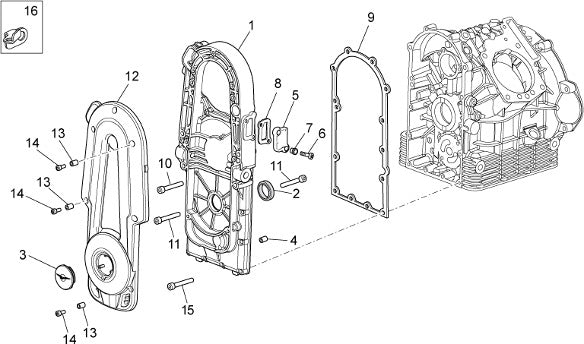

2010 2016 Norge 1200 ie 8v E3 ABS Crank Case II
| Position | Part Number | Description |
|---|---|---|
| 1 | 879876 | Timing system cover (#879876) |
| 2 | 90412237 | SEAL 22X35X7 Viton (#90412237) |
| 3 | 05002130 | Plug (#05002130) |
| 4 | 825597 | Nozzle for carter (#825597) |
| 5 | 976554 | Cap (#976554) |
| 6 | 98682320 | Screw (#98682320) |
| 7 | 91120607 | Bush 6,4x8,4x10,5 (#91120607) |
| 8 | 177408 | O.R. RING (#177408) |
| 9 | 976478 | METAL TIMING COVER GASKET(#976478) |
| 10 | AP8150046 | Hex socket screw M8x55* (#AP8150046) |
| 11 | 98620330 | V/COVER BOLT (#98620330) USE 98680330 |
| 12 | 05001630 | Alternator Cover, Grey (#05001630) |
| 13 | 91120606 | Bushing 6,8x8,8x5,8 (#91120606) |
| 14 | 98682316 | ALLEN BOLT (#98682316) |
| 15 | 98620335 | SCREWS (#98620335) |
| 16 | 06765500 | BRACKET(#06765500) |
