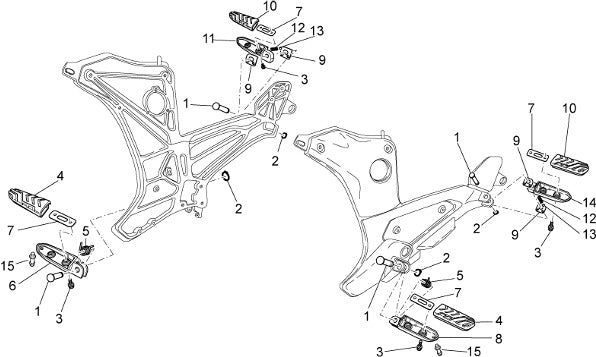

2010 2016 Norge 1200 ie 8v E3 ABS Foot Rests I
| Position | Part Number | Description |
|---|---|---|
| 1 | AP8121567 | Pin (#AP8121567) |
| 2 | AP8152409 | STOP RING (#AP8152409) |
| 3 | AP8152277 | Screw w/flange (#AP8152277) |
| 4 | 898368 | LATERAL PROTECTION (#898368) |
| 5 | AP8221277 | FOOT PEG SPRING (#AP8221277) |
| 6 | AP8145034 | FOOT PEG RH (#AP8145034) |
| 7 | 32441210 | Plate - Breva (#32441210) |
| 8 | ||
| 9 | AP8134451 | Footrest Plate (#AP8134451) |
| 10 | 898369 | FOOT PEG RUBBER (#898369) |
| 11 | 32442310 | Rear Footrest RH - Breva (#32442310) |
| 12 | AP8121133 | Coil Compress, Spring (#AP8121133) |
| 13 | AP8101861 | Ball (#AP8101861) |
| 14 | 32442710 | Rear Footrest LH - Breva (#32442710) |
| 15 | AP8134838 | Footrest pin (#AP8134838) |
