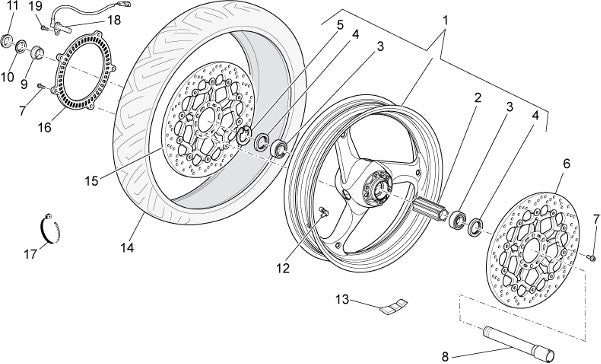

2010 2016 Norge 1200 ie 8v E3 ABS Frame Front Wheel
| Position | Part Number | Description |
|---|---|---|
| 1 | 05610530 | RUOTA ANT COMPLETA (#05610530) |
| 1 | 883883 | NORGE WHEEL RIM (883883) (#883883) |
| 2 | 05615230 | Spacer (#05615230) |
| 3 | ||
| 4 | ||
| 5 | ||
| 6 | 896012 | LH front brake disc (#896012) USE B044280 |
| 6 | ||
| 7 | ||
| 8 | 05614130 | Front Wheel Spindle (#05614130) |
| 9 | ||
| 10 | 95005325 | Washer, Front Axle (#95005325) |
| 11 | 01612190 | Nut, Front Axle (#01612190) USE AP8152335 |
| 12 | 03617710 | Air Valve (#03617710) |
| 13 | 14616150 | WEIGHTS (#14616150) |
| 14 | 895033 | Front tyre 120/70 ZR 17 inch (#895033) |
| 15 | 896011 | RH front brake disc (#896011) |
| 15 | ||
| 16 | ||
| 17 | 49609601 | TIE STRAP (#49609601) |
| 18 | ||
| 19 | 598839 | SCREW (#598839) |
