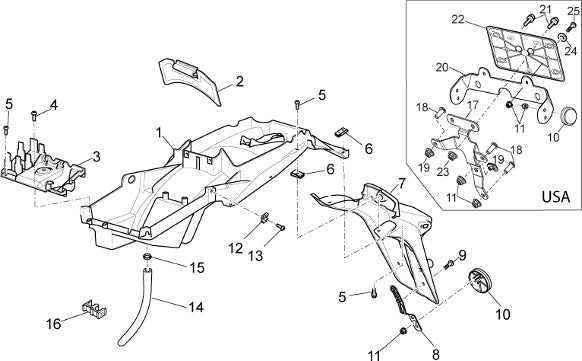

2010 2016 Norge 1200 ie 8v E3 ABS Frame Rear Body Mudguard
| Position | Part Number | Description |
|---|---|---|
| 1 | 883828 | Splash Guard (#883828) |
| 1 | 883864 | SPLASH GUARD (#883864) |
| 2 | 05479630 | Door (#05479630) |
| 3 | 883682 | Support (#883682) |
| 4 | ||
| 5 | ||
| 6 | ||
| 7 | 05438630 | Number Plate Holder (#05438630) |
| 7 | 977968 | PORTATARGA (#977968) |
| 8 | ||
| 9 | ||
| 10 | ||
| 11 | ||
| 12 | 28576591 | CLIP (#28576591) |
| 13 | 98370614 | Screw (#98370614) |
| 14 | 896544 | CONNECTING PIPE (#896544) |
| 15 | ||
| 16 | ||
| 17 | 855071 | Number plate support + Reflector USA (#855071) |
| 18 | ||
| 20 | ||
| 21 | 98210616 | Screw (#98210616) |
| 22 | ||
| 23 | ||
| 24 |
