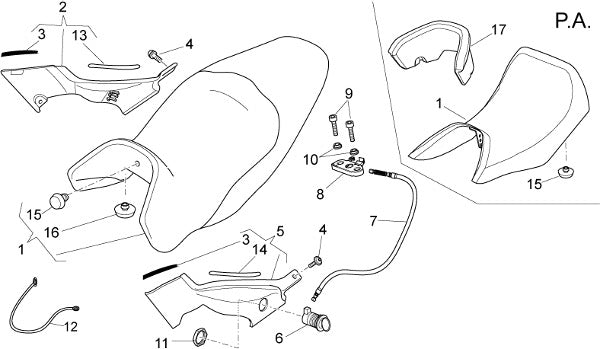

2010 2016 Norge 1200 ie 8v E3 ABS Saddle Central Bod
| Position | Part Number | Description |
|---|---|---|
| 1 | 883824 | Saddle (#883824) |
| 1 | 978123 | SADDLE (#978123) |
| 2 | 05570230 | Rh Body Panel Blank (#05570230) |
| 2 | 0557023000XE4 | #02 RH side panel, silver (#0557023000XE4 ) |
| 2 | 0557023000XN2 | RH side panel, black (#0557023000XN2) |
| 2 | 0557023000YM2 | RH side panel, White (#0557023000YM2) |
| 2 | 05570230BM | RH side panel, White (#05570230BM) |
| 2 | 05570230F2 | RH side panel, grey (#05570230F2) |
| 3 | 890517 | LH duct gasket (#890517) |
| 4 | AP8152339 | SCREW W/FLANGE (#AP8152339) |
| 5 | 883496 | LH body panel blank (#883496) |
| 5 | 88349600BM | LH side panel, grey (#88349600BM) |
| 5 | 88349600F2 | LH side panel, grey (#88349600F2) |
| 5 | 88349600XE4 | #05 LH side panel, silver (#88349600XE4 ) |
| 5 | 88349600XN2 | LH side panel, black (#88349600XN2) |
| 5 | 88349600YM2 | LH side panel, grey (#88349600YM2) |
| 6 | 05466830 | Saddle Lock (#05466830) |
| 7 | AP8102914 | Lock cable (#AP8102914) |
| 8 | AP8102913 | Pass.saddle connecti (#AP8102913) |
| 9 | 98370625 | ALLEN SCREW (#98370625) USE STAB6X25 |
| 10 | AP8152299 | Self-Locking Nut (#AP8152299) |
| 11 | AP8102523 | Lock nut (#AP8102523) |
| 12 | AP8102502 | Helmet lock cable (#AP8102502) |
| 13 | 05573830 | RH side fairing decal (#05573830) |
| 14 | 05573831 | DECAL (#05573831) |
| 15 | 32461810 | Saddle rubber (#32461810) |
| 16 | 32461610 | Rubber Spacer - Nevada (#32461610) |
| 17 | 978074 | COPRISERBATOIO (#978074) |
